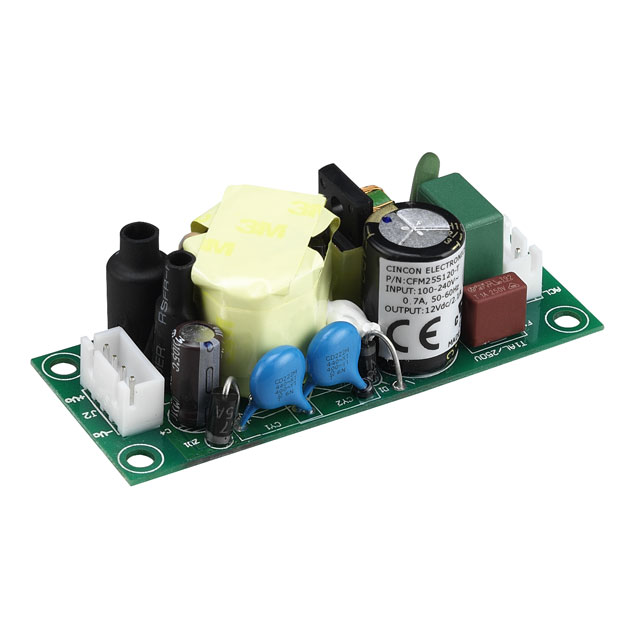

CFM25S120-T

Active

Cincon Electronics Co. LTD

AC/DC CONVERTER 12V 25W

Search across all available documentation for this part.

Active

Cincon Electronics Co. LTD

AC/DC CONVERTER 12V 25W

Technical Specifications

Parameters and characteristics for this part

Specification	CFM25S120-T

Applications	Household Appliances, ITE (Commercial)
Approval Agency	cURus, FCC, NEMKO, CE
Current - Output 1	2.1 A
Efficiency	84 %
Features	Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	25 W
Size / Dimension [x]	70.5 mm
Size / Dimension [x]	2.78 in
Size / Dimension [y]	1.1 in
Size / Dimension [y]	27.9 mm
Size / Dimension [z]	0.91 in
Size / Dimension [z]	23 mm
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Power (Watts)	Efficiency	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Type	Voltage - Output 1	Applications	Approval Agency	Features	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Isolation
Cincon Electronics Co. LTD CFM25S360-T	25 W	87 %	1	1.1 in	0.91 in	23 mm	70.5 mm	2.78 in	27.9 mm	700 mA	90 VAC	264 VAC	Open Frame	36 V	Household Appliances ITE (Commercial)	CE cURus FCC NEMKO	Universal Input	70 °C	-30 °C	Chassis Mount	3000 V
Cincon Electronics Co. LTD CFM25S480-T	25 W	87 %	1	1.1 in	0.91 in	23 mm	70.5 mm	2.78 in	27.9 mm		90 VAC	264 VAC	Open Frame	48 V	Household Appliances ITE (Commercial)	CE cURus FCC NEMKO	Universal Input	70 °C	-30 °C	Chassis Mount	3000 V
Cincon Electronics Co. LTD CFM25S120-T	25 W	84 %	1	1.1 in	0.91 in	23 mm	70.5 mm	2.78 in	27.9 mm	2.1 A	90 VAC	264 VAC	Open Frame	12 V	Household Appliances ITE (Commercial)	CE cURus FCC NEMKO	Universal Input	70 °C	-30 °C	Chassis Mount	3000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
