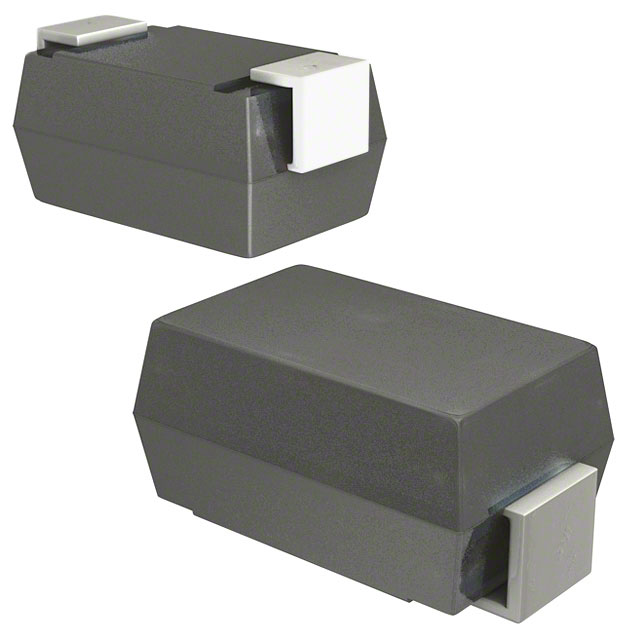

US2J-HF
ActiveComchip Technology
DIODE GEN PURP 600V 2A DO214AC
Deep-Dive with AI
Search across all available documentation for this part.
US2J-HF
ActiveComchip Technology
DIODE GEN PURP 600V 2A DO214AC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | US2J-HF |
|---|---|
| Current - Average Rectified (Io) | 2 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |
| Package / Case | DO-214AC, SMA |
| Reverse Recovery Time (trr) | 75 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | DO-214AC (SMA) |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.65 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5000 | $ 0.07 | |
| 10000 | $ 0.06 | |||
| 25000 | $ 0.06 | |||
| 50000 | $ 0.05 | |||
| 125000 | $ 0.05 | |||
US2J Series
DIODE GEN PURP 600V 2A DO214AC
| Part | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Technology | Voltage - DC Reverse (Vr) (Max) [Max] | Reverse Recovery Time (trr) | Mounting Type | Package / Case | Supplier Device Package | Operating Temperature - Junction [Max] | Operating Temperature - Junction [Min] | Current - Reverse Leakage @ Vr | Speed |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Comchip Technology US2J-HF | 2 A | 1.65 V | Standard | 600 V | 75 ns | Surface Mount | DO-214AC, SMA | DO-214AC (SMA) | 150 °C | -55 °C | 5 µA | 200 mA, 500 ns |
Description
General part information
US2J Series
Diode 600 V 2A Surface Mount DO-214AC (SMA)
Documents
Technical documentation and resources
No documents available
