M1RXK-2436J
Active3M
IDC CABLE - MPR24K/MC24G/X
Deep-Dive with AI
Search across all available documentation for this part.
M1RXK-2436J
Active3M
IDC CABLE - MPR24K/MC24G/X
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M1RXK-2436J | M1RXK Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | - | Ribbon, Multiple, Multiple, Twisted Pair (Flat) |
| Connector Type | Plug to Cable | Plug to Cable |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Polarizing Key, Strain Relief | Polarizing Key, Strain Relief |
| Length [x] | 3 ft | 3 - 3.34 ft |
| Length [x] | 914.4 mm | 1.02 - 914.4 mm |
| Number of Positions | 24 | 14 - 64 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
M1RXK Series
IDC CABLE - MPR14K/MC14M/X
| Part | Number of Rows | Features | Connector Type | Number of Positions | Color | Contact Finish Thickness | Contact Finish Thickness | Cable Termination | Shielding | Length [x] | Length [x] | Contact Finish | Pitch - Connector | Pitch - Connector | Pitch - Cable | Pitch - Cable | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2 | Polarizing Key, Strain Relief | Plug to Cable | 14 | Multiple, Ribbon | 0.76 Ám | 30 Áin | IDC | Unshielded | 3 ft | 914.4 mm | Gold | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | ||
2 | Polarizing Key, Strain Relief | Plug to Cable | 24 | 0.76 Ám | 30 Áin | IDC | Unshielded | 3 ft | 914.4 mm | Gold | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | |||
2 | Polarizing Key, Strain Relief | Plug to Cable | 50 | Multiple, Ribbon | 0.76 Ám | 30 Áin | IDC | Unshielded | 3 ft | 914.4 mm | Gold | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | ||
2 | Polarizing Key, Strain Relief | Plug to Cable | 64 | 0.76 Ám | 30 Áin | IDC | Unshielded | 3 ft | 914.4 mm | Gold | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | |||
2 | Polarizing Key, Strain Relief | Plug to Cable | 30 | Multiple, Ribbon | 0.76 Ám | 30 Áin | IDC | Unshielded | 3 ft | 914.4 mm | Gold | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | ||
2 | Polarizing Key, Strain Relief | Plug to Cable | 26 | Multiple, Ribbon | 0.76 Ám | 30 Áin | IDC | Unshielded | 3 ft | 914.4 mm | Gold | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | ||
2 | Polarizing Key, Strain Relief | Plug to Cable | 20 | 0.76 Ám | 30 Áin | IDC | Unshielded | 3 ft | 914.4 mm | Gold | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | |||
2 | Polarizing Key, Strain Relief | Plug to Cable | 26 | Multiple, Twisted Pair (Flat) | 0.76 Ám | 30 Áin | IDC | Unshielded | 3.34 ft | 1.02 m | Gold | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | ||
2 | Polarizing Key, Strain Relief | Plug to Cable | 60 | 0.76 Ám | 30 Áin | IDC | Unshielded | 3 ft | 914.4 mm | Gold | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | |||
2 | Polarizing Key, Strain Relief | Plug to Cable | Multiple, Ribbon | 0.76 Ám | 30 Áin | IDC | Unshielded | 3 ft | 914.4 mm | Gold | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.21 | |
| 10 | $ 14.79 | |||
| 25 | $ 13.38 | |||
| 50 | $ 12.43 | |||
| 100 | $ 11.57 | |||
| 250 | $ 10.55 | |||
| 500 | $ 9.87 | |||
| 1000 | $ 9.27 | |||
Description
General part information
M1RXK Series

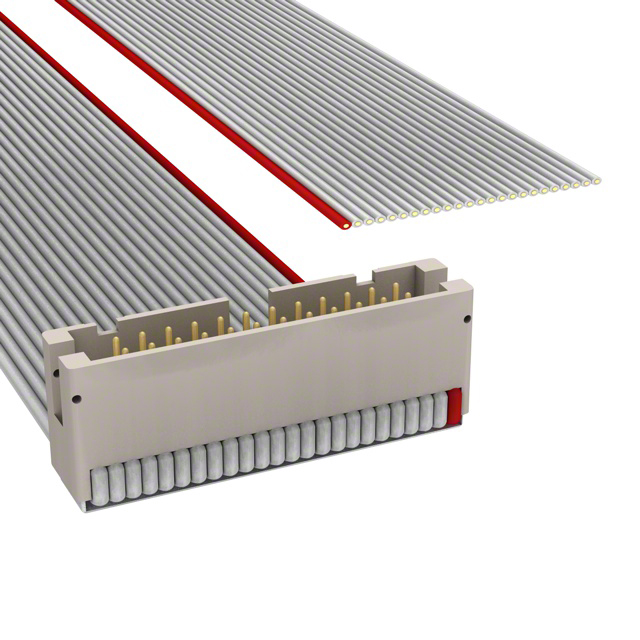

24 Position Cable Assembly Rectangular Plug to Cable 3.00' (914.40mm)
