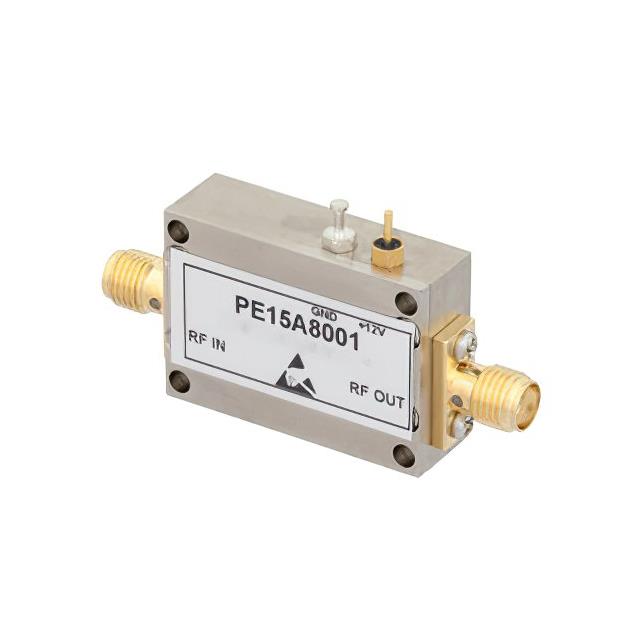

PE15A8001
ActivePasternack
14 DBM P1DB, 10 MHZ TO 6 GHZ, GA
PE15A8001
ActivePasternack
14 DBM P1DB, 10 MHZ TO 6 GHZ, GA
Description
General part information
PE15A8001
RF Amplifier IC Radar 10MHz ~ 6GHz
Technical Specifications
Parameters and characteristics for this part
| Specification | PE15A8001 |
|---|---|
| Current - Supply | 50 mA |
| Frequency (Max) | 6 GHz |
| Frequency (Min) | 10 MHz |
| Gain | 16 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 4.5 dB |
| P1dB | 14 dBm |
| Package / Case | Module, SMA Connectors |
| RF Type | Radar |
| Voltage - Supply (Maximum) | 15 V |
| Voltage - Supply (Minimum) | 9 VDC |
