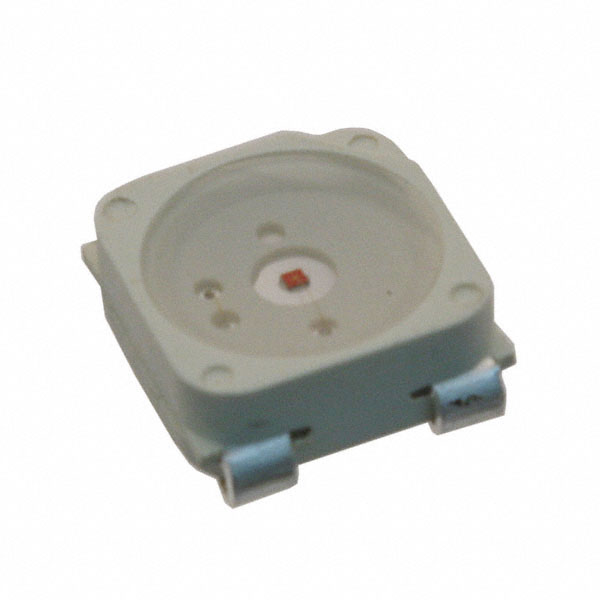

AA1010SE28ZC

Active

Kingbright

LED RED 625NM 4PLCC

Search across all available documentation for this part.

Active

Kingbright

LED RED 625NM 4PLCC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AA1010SE28ZC	AA1010 Series

Color	Red	Yellow, Green, Red
Current - Max [Max]	350 mA	350 mA
Current - Test	350 mA	350 mA
Height - Seated (Max) [Max] [z]	4.65 mm	4.65 mm
Height - Seated (Max) [Max] [z]	0.183 in	0.183 in
Lumens/Watt @ Current - Test	31 lm/W	26 - 56 lm/W
Luminous Flux @ Current/Temperature	-	23 - 65 lm
Mounting Type	Surface Mount	Surface Mount
Package / Case	0404	0404
Size / Dimension [x]	10 mm	10 mm
Size / Dimension [x]	0.394 "	0.394 "
Size / Dimension [y]	10 mm	10 mm
Size / Dimension [y]	0.394 in	0.394 in
Supplier Device Package	4-PLCC	4-PLCC
Thermal Resistance of Package	-	80 °C/W
Thermal Resistance of Package [diameter]	60 °C/W	9 - 60 °C/W
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	2.5 V	2.5 - 3.3 V
Wavelength	625 nm	530 - 625 nm

LED YELLOW 588NM 4PLCC

Part	Current - Max [Max]	Color	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Thermal Resistance of Package [custom]	Supplier Device Package	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Mounting Type	Viewing Angle	Wavelength	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Lumens/Watt @ Current - Test	Current - Test	Thermal Resistance of Package [diameter]
Kingbright AA1010SY28ZC	350 mA	Yellow	0404	4.65 mm	0.183 in	80 °C/W	4-PLCC	23 lm	2.5 V	Surface Mount	120 °	588 nm	10 mm	0.394 in	10 mm	0.394 "	26 lm/W	350 mA
Kingbright AA1010ZG10ZC	350 mA	Green	0404	4.65 mm	0.183 in		4-PLCC	65 lm	3.3 V	Surface Mount	120 °	530 nm	10 mm	0.394 in	10 mm	0.394 "	56 lm/W	350 mA	9 °C/W
Kingbright AA1010SE28ZC	350 mA	Red	0404	4.65 mm	0.183 in		4-PLCC		2.5 V	Surface Mount	120 °	625 nm	10 mm	0.394 in	10 mm	0.394 "	31 lm/W	350 mA	60 °C/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color - Red 625nm (Typ) 0404 (1010 Metric)
