PE-53112NL
ActivePulse Electronics
FIXED IND 47UH 3A 50 MOHM TH
PE-53112NL
ActivePulse Electronics
FIXED IND 47UH 3A 50 MOHM TH
Description
General part information
PE-53112NL

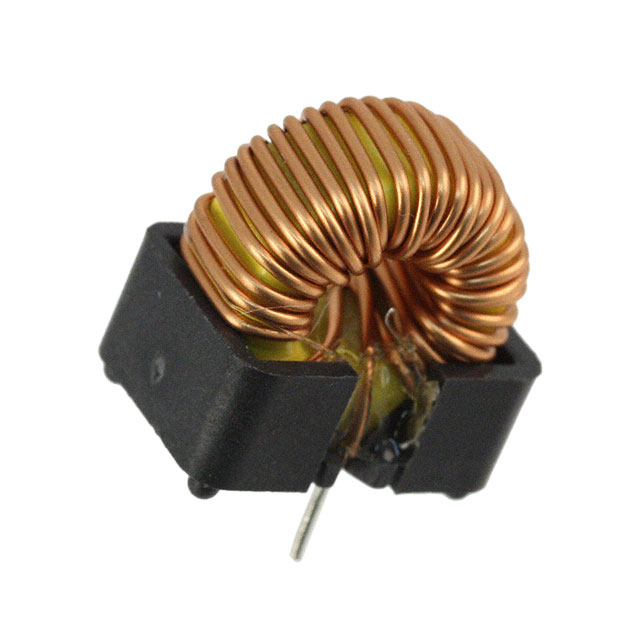

47 µH Unshielded Toroidal Inductor 3 A 50mOhm Max Radial, Vertical (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | PE-53112NL |
|---|---|
| Current Rating | 3 A |
| DC Resistance (DCR) (Max) | 50 mOhm |
| Height - Seated (Max) | 0.7 in |
| Inductance | 47 µH |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial, Vertical (Open) |
| Shielding | Unshielded |
| Size / Dimension Length | 0.65 in |
| Size / Dimension Width | 0.45 in |
| Tolerance | 20 % |
| Type | Toroidal |
