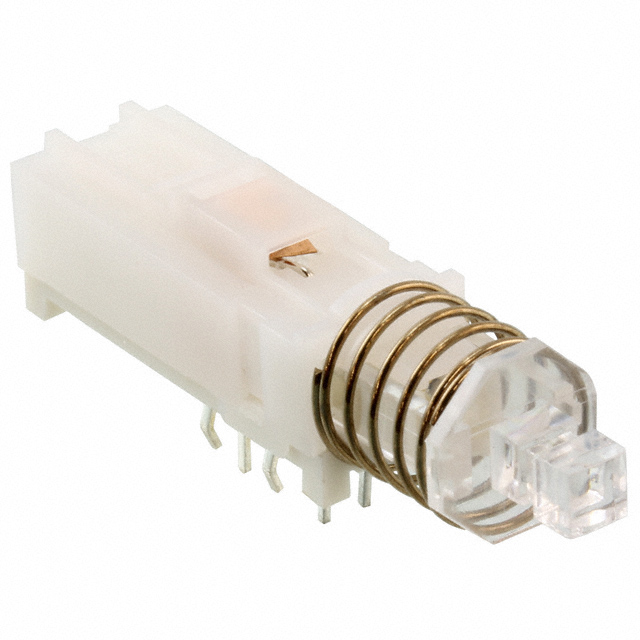

Specification	WBL2UEERBQ

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	DPDT
Color	Blue, Red
Current Rating	300 mA
Illumination Type	LED
Illumination Voltage (Nominal)	3.5 VDC, 1.7
Illumination Voltage (Nominal)	3.5 VDC, 1.7 VDC
Mechanical Life (Cycles)	10000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Switch Function	On-On
Termination Style	PC Pin
Type	Standard, Illuminated
Voltage Rating - DC	30 V

WBL2 Series

Part	Mechanical Life (Cycles)	Illumination Voltage (Nominal)	Actuator Marking	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Type	Switch Function	Circuit	Illumination Type	Color	Voltage Rating - DC	Current Rating	Actuator Type	Termination Style	Color - Actuator/Cap	Illumination Voltage (Nominal)
E-Switch WBL2UOABQ	10000 Cycles	3.5 VDC	No Marking	70 °C	-20 °C	Right Angle Through Hole	Illuminated Standard	On-Mom	DPDT	LED	Blue	30 V	300 mA	Plunger for Cap	PC Pin
E-Switch WBL2UEEGYQR05BLKPWR	10000 Cycles	1.7 VDC		70 °C	-20 °C	Right Angle Through Hole	Illuminated Standard	On-On	DPDT	LED	Green Yellow	30 V	300 mA	Button Round	PC Pin	Clear
E-Switch WBL2UOAYBQR05CLR	10000 Cycles	1.7 VDC 3.5 VDC	No Marking	70 °C	-20 °C	Right Angle Through Hole	Illuminated Standard	On-Mom	DPDT	LED	Blue Yellow	30 V	300 mA	Button Round	PC Pin	Clear	1.7 3.5 VDC
E-Switch WBL2UEEGBQR05CLR	10000 Cycles	1.7 VDC 3.5 VDC	No Marking	70 °C	-20 °C	Right Angle Through Hole	Illuminated Standard	On-On	DPDT	LED	Blue Green	30 V	300 mA	Button Round	PC Pin	Clear	1.7 3.5 VDC
E-Switch WBL2UEERQR05CLR	10000 Cycles	1.7 VDC	No Marking	70 °C	-20 °C	Right Angle Through Hole	Illuminated Standard	On-On	DPDT	LED	Red	30 V	300 mA	Button Round	PC Pin	Clear
E-Switch WBL2UEERBQR05CLR	10000 Cycles	1.7 VDC 3.5 VDC	No Marking	70 °C	-20 °C	Right Angle Through Hole	Illuminated Standard	On-On	DPDT	LED	Blue Red	30 V	300 mA	Button Round	PC Pin	Clear	1.7 3.5 VDC
E-Switch WBL2UEEBQR05CLR	10000 Cycles	3.5 VDC	No Marking	70 °C	-20 °C	Right Angle Through Hole	Illuminated Standard	On-On	DPDT	LED	Blue	30 V	300 mA	Button Round	PC Pin	Clear
E-Switch WBL2UEEGQ	10000 Cycles	1.7 VDC	No Marking	70 °C	-20 °C	Right Angle Through Hole	Illuminated Standard	On-On	DPDT	LED	Green	30 V	300 mA	Plunger for Cap	PC Pin
E-Switch WBL2UOARQ	10000 Cycles	1.7 VDC	No Marking	70 °C	-20 °C	Right Angle Through Hole	Illuminated Standard	On-Mom	DPDT	LED	Red	30 V	300 mA	Plunger for Cap	PC Pin
E-Switch WBL2UOARQR05CLR	10000 Cycles	1.7 VDC	No Marking	70 °C	-20 °C	Right Angle Through Hole	Illuminated Standard	On-Mom	DPDT	LED	Red	30 V	300 mA	Button Round	PC Pin	Clear
