PE44389
ActivePasternack
SSMA FEMALE BULKHEAD MOUNT CONNE
PE44389
ActivePasternack
SSMA FEMALE BULKHEAD MOUNT CONNE
Description
General part information
PE44389

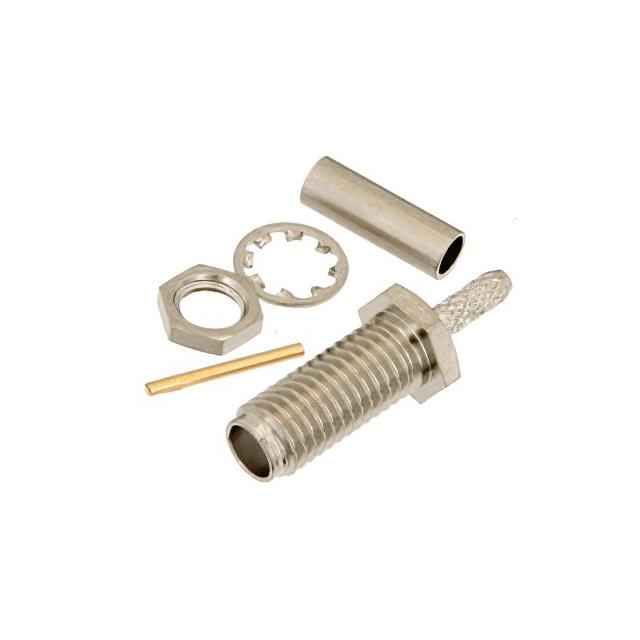

SSMA Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE44389 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 196, RG-178 |
| Center Contact Plating | Gold |
| Connector Style | SSMA |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Feature | Rear Side Nut, Bulkhead |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Shield Termination | Crimp |
