Description
General part information
0608ABPT

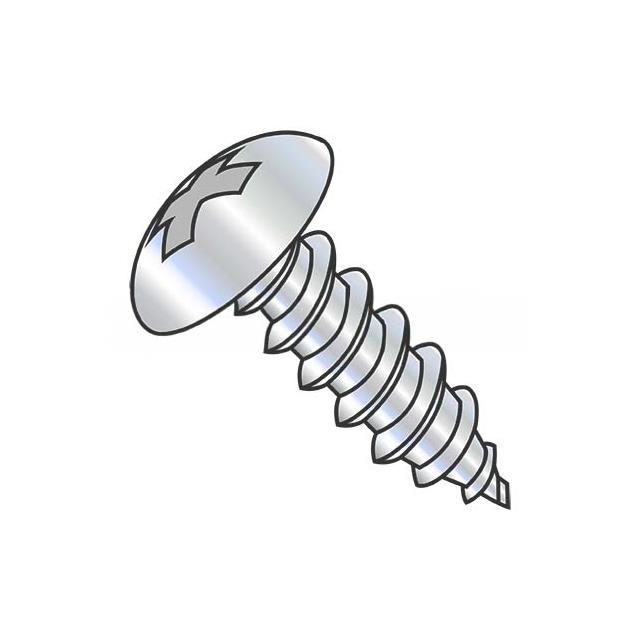

#6-20 Truss Head Self-Tapping Screw Phillips Drive Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 0608ABPT |
|---|---|
| Drive Type | Phillips |
| Features | Standard |
| Head Diameter | 0.312 in |
| Head Height | 0.078 in |
| Length - Below Head | 0.5 in |
| Length - Overall | 0.578 in |
| Material | Steel |
| Plating | Zinc |
| Screw Head Type | Truss Head |
| Thread Size (Max) | 20 mm |
| Thread Size (Min) | 6 mm |
| Type | Self-Tapping Screw |
