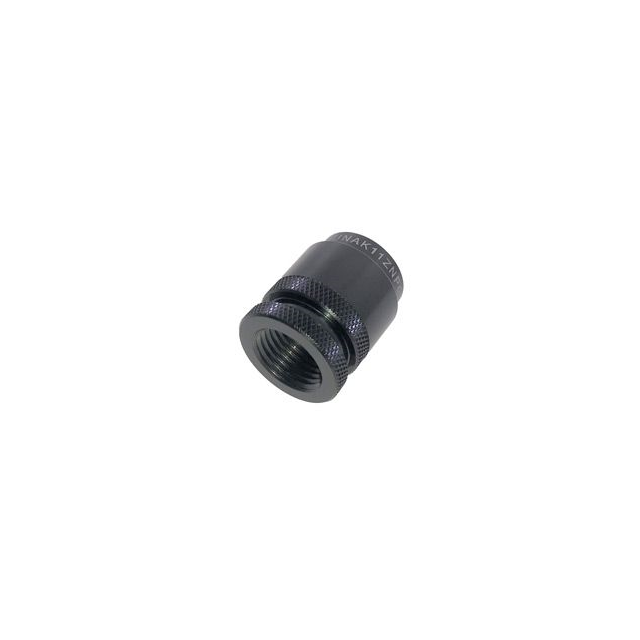

IP-UNAK21ZN-PG21

Active

Sure-Seal

CONN BACKSHELL ADPT SZ21 BLK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IP-UNAK21ZN-PG21

Active

Sure-Seal

CONN BACKSHELL ADPT SZ21 BLK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

IP-U Series

Black Connector Backshell, Adapter PG21 21

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IP-UNAK21ZN-PG21	IP-U Series

Cable Exit	180 °	180 °
Cable Opening	-	9.5 - 28.6 mm
Cable Opening	-	0.374 - 1.126 in
Cable Opening	-	0.709 in
Cable Opening	-	18 mm
Cable Opening [custom]	27.89 mm	7.92 - 41.28 mm
Cable Opening [custom]	1.098 in	0.312 - 1.625 in
Color	Black	Olive Drab, Silver, Black, Gray
Diameter - Outside [diameter]	36.27 mm	18.8 - 45 mm
Diameter - Outside [diameter]	1.428 in	0.74 - 1.772 in
For Use With/Related Products	MIL-DTL-38999 Series III	MIL-DTL-38999 Series III, MIL-DTL-26482 Series I, MIL-DTL-38999 Series I, II, MIL-DTL-5015 Series, MIL-DTL-26482 Series II
Includes	1 O-Ring, 1 Backshell	1 O-Ring, 1 Backshell
Material	Aluminum	Aluminum
Plating	Zinc Nickel over Electroless Nickel	Cadmium over Electroless Nickel, Electroless Nickel, Zinc Cobalt over Electroless Nickel, Zinc Nickel over Electroless Nickel, Zinc Nickel, Anodized
Shell Size - Insert	21	9 - 40
Shell Size - Insert	-	17, E, 16, 18, 8S, 9, 8, 14, 14S, 12, C, 12S, 10, D, B, J, 16S, 10SL
Shell Size - Insert	-	9
Shell Size - Insert	-	A
Shielding	Unshielded	Unshielded
Thread Size	PG21	PG16, PG29, PG21, PG7, PG9, PG11, PG13.5
Type	Backshell, Adapter	Backshell, Adapter, Banding, Backshell

IP-U Series

CONN BACKSHELL ADPT SZ17 PG16

Part	Material	Shielding	Cable Exit	Cable Opening [diameter]	Cable Opening [diameter]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Type	Thread Size	Shell Size - Insert	For Use With/Related Products	Color	Plating	Includes	Cable Opening [custom]	Cable Opening [custom]	Shell Size - Insert
Sure-Seal IP-UNAK17W-PG16	Aluminum	Unshielded	180 °	21.11 mm	0.831 in	1.146 in	29.11 mm	Backshell, Adapter	PG16	17	MIL-DTL-38999 Series III	Olive Drab	Cadmium over Electroless Nickel	1 Backshell, 1 O-Ring
Sure-Seal IP-UNCC20N	Aluminum	Unshielded	180 °					Backshell, Banding		20, 21	MIL-DTL-26482 Series I, MIL-DTL-38999 Series I, II	Silver	Electroless Nickel	1 Backshell, 1 O-Ring	0.812 in	20.62 mm
Sure-Seal IP-UNAK25W-PG29	Aluminum	Unshielded	180 °			1.687 in	42.85 mm	Backshell, Adapter	PG29	25	MIL-DTL-38999 Series III	Olive Drab	Cadmium over Electroless Nickel	1 Backshell, 1 O-Ring	1.417 in	36 mm
Sure-Seal IP-UNCC16N	Aluminum	Unshielded	180 °					Backshell, Banding		16, 17	MIL-DTL-26482 Series I, MIL-DTL-38999 Series I, II	Silver	Electroless Nickel	1 Backshell, 1 O-Ring	0.687 in	17.46 mm
Sure-Seal IP-UNCK17N	Aluminum	Unshielded	180 °					Backshell, Banding			MIL-DTL-38999 Series III	Silver	Electroless Nickel	1 Backshell, 1 O-Ring	0.687 in	17.46 mm	17, E
Sure-Seal IP-UNCC16B	Aluminum	Unshielded	180 °					Backshell, Banding		16, 17	MIL-DTL-26482 Series I, MIL-DTL-38999 Series I, II	Black	Zinc Cobalt over Electroless Nickel	1 Backshell, 1 O-Ring	0.687 in	17.46 mm
Sure-Seal IP-UNAK25ZN-PG29	Aluminum	Unshielded	180 °			1.687 in	42.85 mm	Backshell, Adapter	PG29	25	MIL-DTL-38999 Series III	Black	Zinc Nickel over Electroless Nickel	1 Backshell, 1 O-Ring	1.417 in	36 mm
Sure-Seal IP-UNCA18W	Aluminum	Unshielded	180 °					Backshell, Banding			MIL-DTL-26482 Series II, MIL-DTL-5015 Series	Olive Drab	Cadmium over Electroless Nickel	1 Backshell, 1 O-Ring	0.687 in	17.46 mm	16, 18
Sure-Seal IP-UNCC8B	Aluminum	Unshielded	180 °					Backshell, Banding			MIL-DTL-26482 Series I, MIL-DTL-38999 Series I, II, MIL-DTL-5015 Series	Black	Zinc Cobalt over Electroless Nickel	1 Backshell, 1 O-Ring	0.312 in	7.92 mm	8, 8S, 9
Sure-Seal IP-UNAC20B-PG21	Aluminum	Unshielded	180 °			1.428 in	36.27 mm	Backshell, Adapter	PG21	20, 21	MIL-DTL-26482 Series I, MIL-DTL-26482 Series II, MIL-DTL-5015 Series	Black	Zinc Cobalt over Electroless Nickel	1 Backshell, 1 O-Ring	1.083 in	27.51 mm
