V72111500000G
ActiveMcGill Microwave Systems

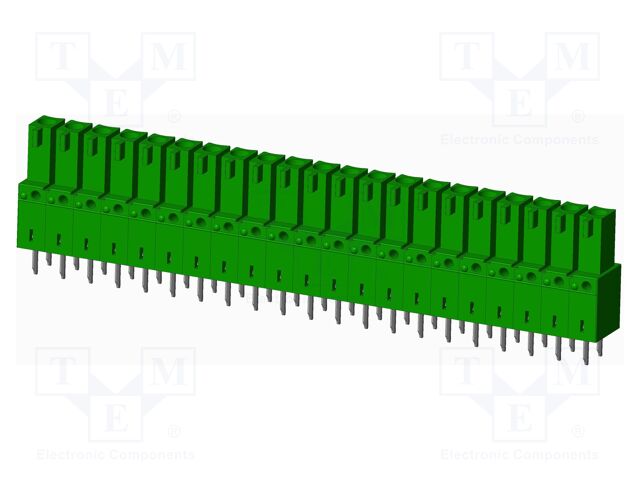

CONNECTOR: PLUGGABLE TERMINAL BLOCK; SOCKET; FEMALE; 4A; 300V
V72111500000G
ActiveMcGill Microwave Systems
CONNECTOR: PLUGGABLE TERMINAL BLOCK; SOCKET; FEMALE; 4A; 300V
Description
General part information
V72111500000G
CONNECTOR: PLUGGABLE TERMINAL BLOCK; SOCKET; FEMALE; 4A; 300V
Technical Specifications
Parameters and characteristics for this part
| Specification | V72111500000G |
|---|---|
| Color | Green |
| Contact Mating Finish | Tin |
| Current - UL | 4 A |
| Header Orientation | Vertical |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 21 |
| Operating Temperature (Max) | 115 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.138 in |
| Positions Per Level | 21 |
| Termination Style | Solder |
| Type | Header, Female Sockets |
| Voltage - UL | 300 V |
