PAG.M1.4GL.AC52J
ActiveLEMO

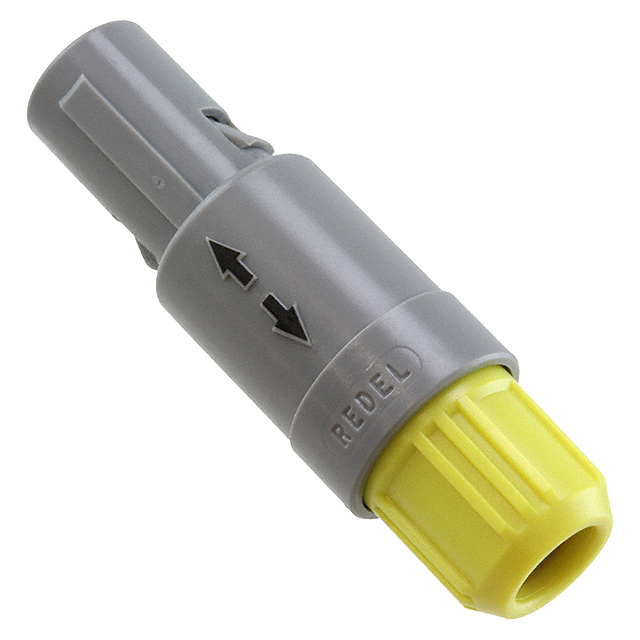

CONN PLUG MALE 14P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
PAG.M1.4GL.AC52J
ActiveLEMO
CONN PLUG MALE 14P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PAG.M1.4GL.AC52J | PAG.M1 Series |
|---|---|---|
| Applications | Medical, Industrial, Automotive, Testing Equipment & Measurement | Medical, Industrial, Automotive, Testing Equipment & Measurement |
| Backshell Material, Plating | Polysulfone (PSU) | Polysulfone (PSU), Polyetherimide (PEI) |
| Cable Opening | - | 2.7 mm |
| Cable Opening | - | 0.154 in |
| Cable Opening | - | 3.9 mm |
| Cable Opening | - | 0.106 in |
| Cable Opening | - | 0.209 - 0.259 in |
| Cable Opening | - | 5.3 - 6.5 mm |
| Cable Opening [Max] [custom] | 0.205 in | 0.205 in |
| Cable Opening [Max] [custom] | 5.2 mm | 5.2 mm |
| Cable Opening [Min] [custom] | 0.157 in | 0.157 in |
| Cable Opening [Min] [custom] | 4 mm | 4 mm |
| Color | Gray, Yellow | Gray, Yellow, Black, Red, Blue |
| Connector Type | Plug, Male Pins | Plug, Male Pins, Insert |
| Contact Finish - Mating | Gold | Gold |
| Current Rating (Amps) | 2 A | 2 - 3 A |
| Fastening Type | Detent Lock, Push-Pull | Detent Lock, Push-Pull |
| Features | Backshell | Backshell, Insert Only, Requires Shell |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 14 | 10 - 14 |
| Operating Temperature [Max] | 150 °C | 150 - 170 °C |
| Operating Temperature [Min] | -50 °C | -50 °C |
| Orientation | G | G |
| Primary Material | Plastic | Plastic |
| Shell Material | Polysulfone (PSU) | Polysulfone (PSU), Polyetherimide (PEI) |
| Shell Size - Insert | M14 | M10, M14 |
| Shielding | Unshielded | Unshielded |
PAG.M1 Series
CONN PLUG MALE 10P GOLD SLDR CUP
| Part | Connector Type | Shielding | Orientation | Number of Positions | Mounting Type | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Shell Size - Insert | Features | Operating Temperature [Max] | Operating Temperature [Min] | Backshell Material, Plating | Primary Material | Shell Material | Color | Applications | Contact Finish - Mating | Fastening Type | Insert Material | Current Rating (Amps) | Ingress Protection | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO PAG.M1.0GL.AC39Z | Male Pins, Plug | Unshielded | G | 10 | Free Hanging (In-Line) | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in | M10 | Backshell | 150 °C | -50 °C | Polysulfone (PSU) | Plastic | Polysulfone (PSU) | Gray | Automotive, Industrial, Medical, Testing Equipment & Measurement | Gold | Detent Lock, Push-Pull | Polyetheretherketone (PEEK) | 3 A | IP50 | ||||||
LEMO PAG.M1.4ZL.A | Insert, Male Pins | Unshielded | G | 14 | M14 | Insert Only, Requires Shell | Automotive, Industrial, Medical, Testing Equipment & Measurement | Gold | Polyetheretherketone (PEEK) | 2 A | IP50 | ||||||||||||||||||
LEMO PAG.M1.4GL.AC39G | Male Pins, Plug | Unshielded | G | 14 | Free Hanging (In-Line) | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in | M14 | Backshell | 150 °C | -50 °C | Polysulfone (PSU) | Plastic | Polysulfone (PSU) | Gray | Automotive, Industrial, Medical, Testing Equipment & Measurement | Gold | Detent Lock, Push-Pull | Polyetheretherketone (PEEK) | 2 A | IP50 | ||||||
LEMO PAG.M1.4GL.AC39J | Male Pins, Plug | Unshielded | G | 14 | Free Hanging (In-Line) | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in | M14 | Backshell | 150 °C | -50 °C | Polysulfone (PSU) | Plastic | Polysulfone (PSU) | Gray, Yellow | Automotive, Industrial, Medical, Testing Equipment & Measurement | Gold | Detent Lock, Push-Pull | Polyetheretherketone (PEEK) | 2 A | IP50 | ||||||
Male Pins, Plug | Unshielded | G | 10 | Free Hanging (In-Line) | M10 | Backshell | 150 °C | -50 °C | Polysulfone (PSU) | Plastic | Polysulfone (PSU) | Gray | Automotive, Industrial, Medical, Testing Equipment & Measurement | Gold | Detent Lock, Push-Pull | Polyetheretherketone (PEEK) | 3 A | IP50 | 0.157 in | 0.205 in | 4 mm | 5.2 mm | |||||||
Male Pins, Plug | Unshielded | G | 14 | Free Hanging (In-Line) | M14 | Backshell | 170 °C | -50 °C | Polyetherimide (PEI) | Plastic | Polyetherimide (PEI) | Gray | Automotive, Industrial, Medical, Testing Equipment & Measurement | Gold | Detent Lock, Push-Pull | Polyetheretherketone (PEEK) | 2 A | IP50 | 0.157 in | 0.205 in | 4 mm | 5.2 mm | |||||||
LEMO PAG.M1.0TL.AC65Z | Male Pins, Plug | Unshielded | G | 10 | Free Hanging (In-Line) | M10 | Backshell | 170 °C | -50 °C | Polyetherimide (PEI) | Plastic | Polyetherimide (PEI) | Black | Automotive, Industrial, Medical, Testing Equipment & Measurement | Gold | Detent Lock, Push-Pull | Polyetheretherketone (PEEK) | 3 A | IP50 | 0.209 in, 0.256 in | 5.3 mm, 6.5 mm | ||||||||
LEMO PAG.M1.4GL.AC65G | Male Pins, Plug | Unshielded | G | 14 | Free Hanging (In-Line) | M14 | Backshell | 150 °C | -50 °C | Polysulfone (PSU) | Plastic | Polysulfone (PSU) | Gray | Automotive, Industrial, Medical, Testing Equipment & Measurement | Gold | Detent Lock, Push-Pull | Polyetheretherketone (PEEK) | 2 A | IP50 | 0.209 in, 0.256 in | 5.3 mm, 6.5 mm | ||||||||
LEMO PAG.M1.4GL.AC52R | Male Pins, Plug | Unshielded | G | 14 | Free Hanging (In-Line) | M14 | Backshell | 150 °C | -50 °C | Polysulfone (PSU) | Plastic | Polysulfone (PSU) | Gray, Red | Automotive, Industrial, Medical, Testing Equipment & Measurement | Gold | Detent Lock, Push-Pull | Polyetheretherketone (PEEK) | 2 A | IP50 | 0.157 in | 0.205 in | 4 mm | 5.2 mm | ||||||
Male Pins, Plug | Unshielded | G | 14 | Free Hanging (In-Line) | M14 | Backshell | 170 °C | -50 °C | Polyetherimide (PEI) | Plastic | Polyetherimide (PEI) | Black | Automotive, Industrial, Medical, Testing Equipment & Measurement | Gold | Detent Lock, Push-Pull | Polyetheretherketone (PEEK) | 2 A | IP50 | 0.209 in, 0.256 in | 5.3 mm, 6.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 37.11 | |
| 10 | $ 28.68 | |||
| 25 | $ 26.00 | |||
| 50 | $ 24.19 | |||
| 100 | $ 22.56 | |||
| 250 | $ 20.63 | |||
| 500 | $ 19.33 | |||
Description
General part information
PAG.M1 Series
14 Position Circular Connector Plug, Male Pins Solder Cup
