111EMI,BK
ActiveSerpac
BOX ABS BLACK 3.6"L X 2.25"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
111EMI,BK
ActiveSerpac
BOX ABS BLACK 3.6"L X 2.25"W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 111EMI,BK |
|---|---|
| Area (L x W) | 52.3 cm² |
| Area (L x W) | 8.1 in² |
| Color | Black |
| Container Type | Box |
| Design | Split Sides, Hand Held |
| Features | PCB Supports, EMI Shielded |
| Height [z] | 38.1 mm |
| Height [z] | 1.5 in |
| Material | ABS, Plastic, EMI |
| Ratings | IP40 |
| Size / Dimension [x] | 91.44 mm |
| Size / Dimension [x] | 3.6 in |
| Size / Dimension [y] | 57.15 mm |
| Size / Dimension [y] | 2.25 in |
| Thickness | 2.54 mm |
| Thickness | 0.1 in |
| Weight | 62.14 g |
| Weight | 0.137 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
111EMI,BK

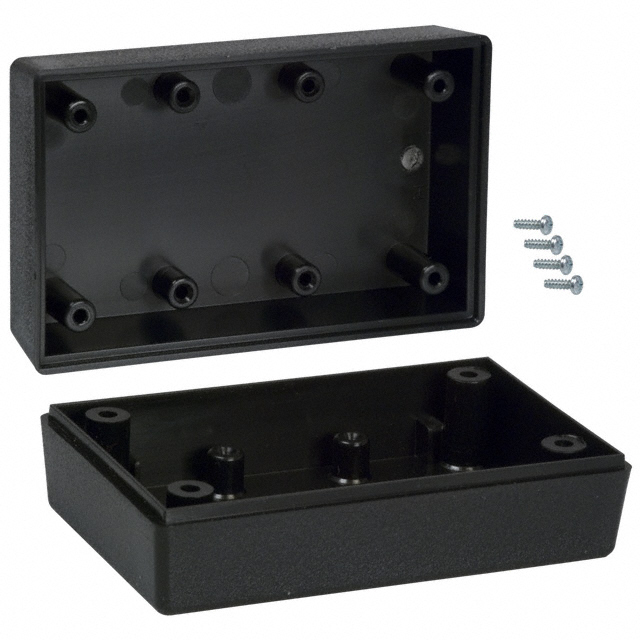

Box Plastic, ABS, EMI Black Hand Held, Split Sides 3.600" L x 2.250" W (91.44mm x 57.15mm) X 1.500" (38.10mm)
Documents
Technical documentation and resources
