HDM12A-05PFFP-SF8002
ActiveMcGill Microwave Systems
M SERIES, M12, A CODE, HIGH TEMP
HDM12A-05PFFP-SF8002
ActiveMcGill Microwave Systems
M SERIES, M12, A CODE, HIGH TEMP
Description
General part information
HDM12A-05PFFP-SF8002

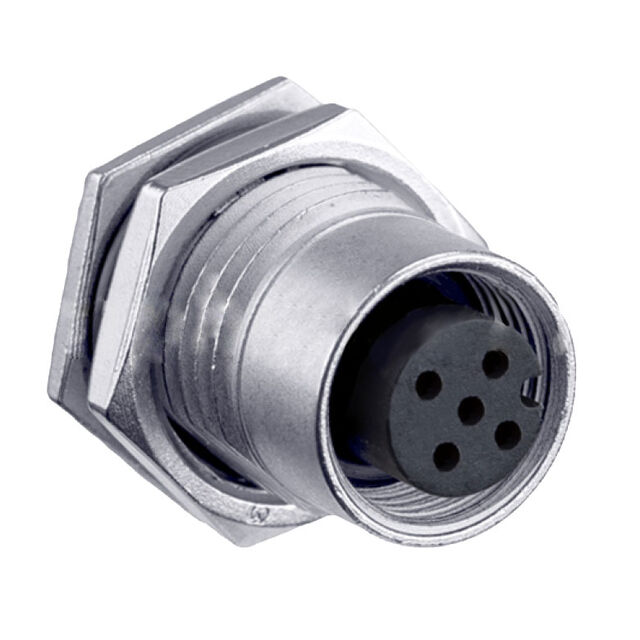

5 Position Circular Connector Receptacle, Female Sockets Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | HDM12A-05PFFP-SF8002 |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating | 4 A |
| Fastening Type | Threaded |
| Features | Ground |
| Ingress Protection Description | Water Resistant, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP69K, IP68 |
| Insert Material | Thermoplastic |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount, Through Hole |
| Number of Positions | 5 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | A |
| Primary Material | Plastic |
| Shell Material | Thermoplastic |
| Shell Size - Insert | M12-5 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 60 V |
