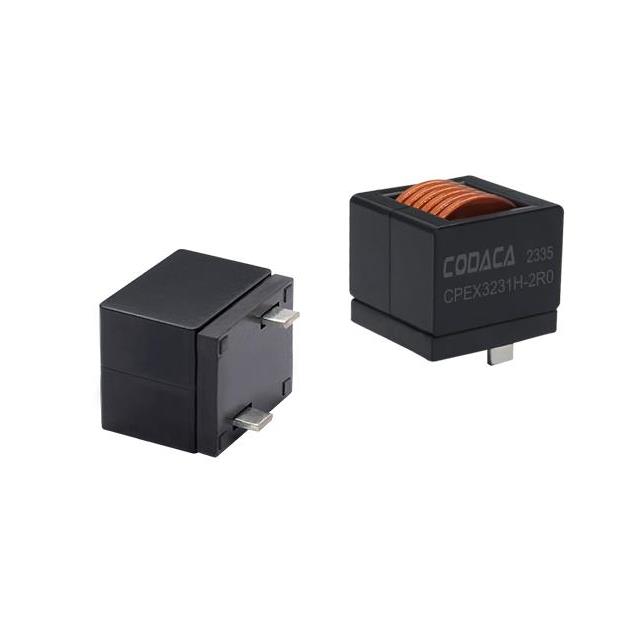

CPEX3231H-200MC
20 µH Shielded Wirewound Inductor 30 A 3.73mOhm Max Vertical, 2 PC Pin
Technical Specifications
Parameters and characteristics for this part
| Specification | CPEX3231H-200MC |
|---|---|
| Current - Saturation (Isat) | 96 A |
| Current Rating | 30 A |
| DC Resistance (DCR) (Max) | 3.73 mOhm |
| Height - Seated (Max) | 1.201 in |
| Inductance | 20 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal Composite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2 PC Pin, Vertical |
| Shielding | Shielded |
| Size / Dimension Length | 1.268 in |
| Size / Dimension Width | 1.24 in |
| Tolerance | 20 % |
| Type | Wirewound |
