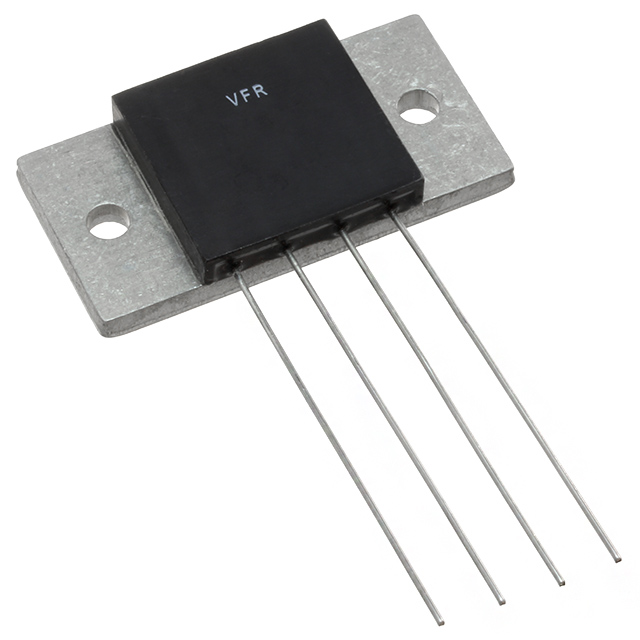

Y1468250R000T0L
ActiveVPG Foil Resistors
RES 250 OHM 10W 0.01% RADIAL
Y1468250R000T0L
ActiveVPG Foil Resistors
RES 250 OHM 10W 0.01% RADIAL
Description
General part information
Y1468250R000T0L
250 Ohms ±0.01% 10W Through Hole Resistor Radial - 4 Leads Current Sense, Moisture Resistant, Non-Inductive Metal Foil
Technical Specifications
Parameters and characteristics for this part
| Specification | Y1468250R000T0L |
|---|---|
| Composition | Metal Foil |
| Features | Moisture Resistant, Non-Inductive, Current Sense |
| Height - Seated (Max) | 0.803 in |
| Number of Terminations | 4 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package Leads | 4 Leads |
| Package Name | Radial |
| Power (Watts) | 10 W |
| Resistance | 250 Ohm |
| Size / Dimension Length | 1.575 in |
| Size / Dimension Width | 0.276 in |
| Temperature Coefficient | 0.2 ppm/°C |
| Tolerance | 0.01 % |
