A2N7002HW-HF

Active

Comchip Technology

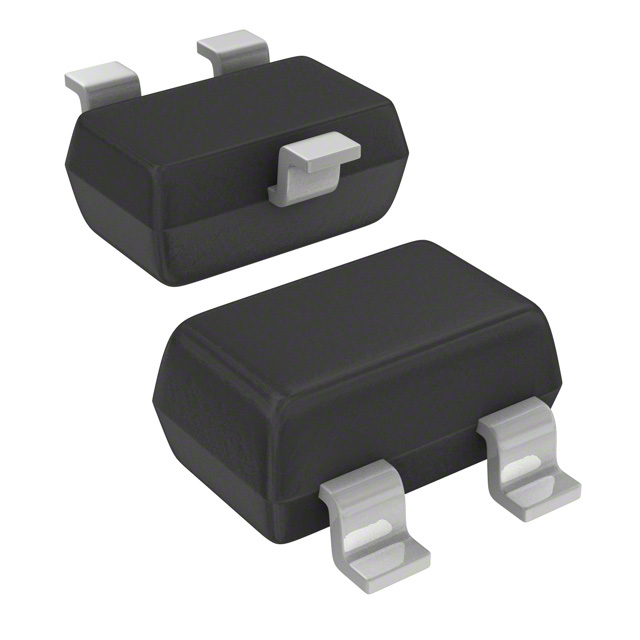

MOSFET N-CH 60V 300MA SOT323

Search across all available documentation for this part.

Active

Comchip Technology

MOSFET N-CH 60V 300MA SOT323

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A2N7002HW-HF	A2N7002 Series

Current - Continuous Drain (Id) @ 25°C	300 mA	300 mA
Drain to Source Voltage (Vdss)	60 V	60 V
FET Type	N-Channel	N-Channel
Grade	Automotive	Automotive
Input Capacitance (Ciss) (Max) @ Vds	41 pF	41 pF
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	SC-70, SOT-323	SOT-883, SC-101, SC-70, SOT-323
Power Dissipation (Max) [Max]	250 mW	150 - 250 mW
Qualification	AEC-Q101	AEC-Q101
Rds On (Max) @ Id, Vgs [Max]	2.5 Ohm	2.5 Ohm
Supplier Device Package	SOT-323	DFN1006-3, SOT-323
Technology	MOSFET (Metal Oxide)	MOSFET (Metal Oxide)
Vgs (Max)	20 V	20 V
Vgs(th) (Max) @ Id	2.5 V	2.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

MOSFET N-CH 60V 300MA DFN1006-3

Part	Mounting Type	FET Type	Vgs (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Input Capacitance (Ciss) (Max) @ Vds	Technology	Supplier Device Package	Qualification	Rds On (Max) @ Id, Vgs [Max]	Vgs(th) (Max) @ Id	Power Dissipation (Max) [Max]	Drain to Source Voltage (Vdss)	Grade	Current - Continuous Drain (Id) @ 25°C	Package / Case
Comchip Technology A2N7002HL-HF	Surface Mount	N-Channel	20 V	-55 °C	150 °C	41 pF	MOSFET (Metal Oxide)	DFN1006-3	AEC-Q101	2.5 Ohm	2.5 V	150 mW	60 V	Automotive	300 mA	SC-101, SOT-883
Comchip Technology A2N7002HW-HF	Surface Mount	N-Channel	20 V	-55 °C	150 °C	41 pF	MOSFET (Metal Oxide)	SOT-323	AEC-Q101	2.5 Ohm	2.5 V	250 mW	60 V	Automotive	300 mA	SC-70, SOT-323

General part information

N-Channel 60 V 300mA (Ta) 250mW (Ta) Surface Mount SOT-323
