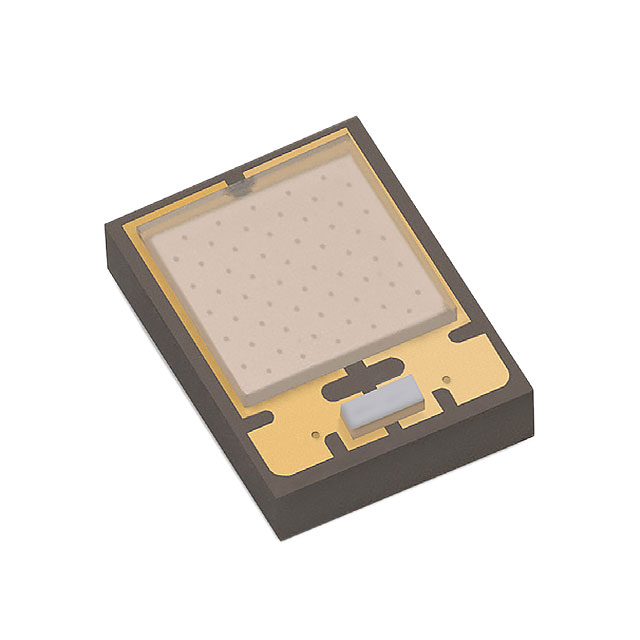

L1F3-U400200012000

Active

Lumileds

LED SINGLE CHIP ULTRAVIOLET 2000MA 2-PIN CSP T/R

Search across all available documentation for this part.

Active

Lumileds

LED SINGLE CHIP ULTRAVIOLET 2000MA 2-PIN CSP T/R

Technical Specifications

Parameters and characteristics commom to parts in this series

LED SINGLE CHIP ULTRAVIOLET 2000MA 2-PIN CSP T/R

Part	Current - DC Forward (If) (Max) [Max]	Wavelength [Min]	Wavelength [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Viewing Angle	Mounting Type	Type	Voltage - Forward (Vf) (Typ)	Orientation	Package / Case	Current - DC Forward (If) (Max)	Wavelength
Lumileds L1F3-U400200012000	2 A	400 nm	410 nm	-40 °C	120 °C	138 °	Surface Mount	Ultraviolet (UV)	3.1 V	Top View	2-SMD, No Lead
Lumileds L1F3-U410200012000	2 A	410 nm	420 nm	-40 °C	120 °C	138 °	Surface Mount	Ultraviolet (UV)	3.1 V	Top View	2-SMD, No Lead
Lumileds L1F3-U400100007001		400 nm	410 nm	-40 °C	120 °C	140 °	Surface Mount	Ultraviolet (UV)	3.1 V	Top View	0404	1 A
Lumileds L1F3-U390200012000	2 A	390 nm	400 nm	-40 °C	120 °C	138 °	Surface Mount	Ultraviolet (UV)	3.1 V	Top View	2-SMD, No Lead
Lumileds L1F3-U380200006000	2 A			-40 °C	120 °C	140 °	Surface Mount	Ultraviolet (UV)	3.2 V	Top View	2-SMD, No Lead		380 nm
