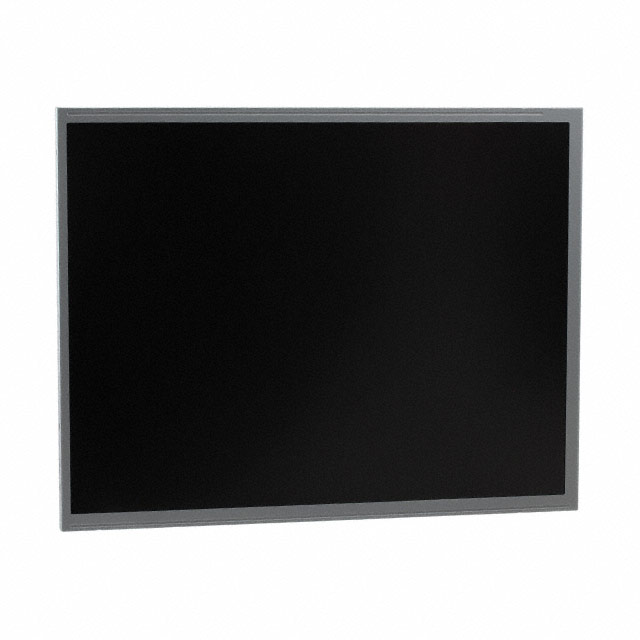

TCG121XGLPBPNN-AN40

Active

Kyocera International, Inc.

LCD MOD TFT 12.1" XGA TRANSMISS

Search across all available documentation for this part.

Active

Kyocera International, Inc.

LCD MOD TFT 12.1" XGA TRANSMISS

Technical Specifications

Parameters and characteristics commom to parts in this series

LCD MOD TFT 12.1" XGA TRANSMISS

Part	Backlight	Viewing Area [y]	Viewing Area [x]	Dot Pitch [y]	Dot Pitch [x]	Interface	Diagonal Screen Size	Diagonal Screen Size	Display Mode	Graphics Color	Display Type	Dot Pixels [y]	Dot Pixels [x]
Kyocera International, Inc. TCG121WXLPAPNN-AN20	LED - White	163.2 mm	261.12 mm	0.2 mm	0.07 mm	LVDS	12.1 in	307.34 mm	Transmissive	Blue, Green, Red	TFT - Color	800	1280
Kyocera International, Inc. TCG121SVLQAPFA-AA20	LED					LVDS			Transmissive			600 pixels	800
Kyocera International, Inc. TCG121XGLPBPNN-AN40	LED - White	163.2 mm	261.12 mm	0.2 mm	0.07 mm	LVDS	12.1 in	307.34 mm	Transmissive	Blue, Green, Red	TFT - Color	768	1024
Kyocera International, Inc. TCG121SVLQAPNN-AN20	LED - White	184.5 mm	246 mm	0.31 mm	0.1 mm	LVDS	12.1 in	307.34 mm	Transmissive	Blue, Green, Red	TFT - Color
Kyocera International, Inc. TCG121XGLPCPNN-AN70	LED - White			0.24 mm	0.08 mm	LVDS	12.1 in	307.34 mm	Transmissive	Blue, Green, Red	TFT - Color	768	1024
Kyocera International, Inc. TCG121SVLPBAFA-AA00	LED - White	184.5 mm	246 mm	0.31 mm	0.1 mm		12.1 in	307.34 mm	Transmissive	Blue, Green, Red	TFT - Color
Kyocera International, Inc. TCG121SVLPAANN-AN20	LED - White	184.5 mm	246 mm	0.31 mm	0.1 mm	LVDS	12.1 in	307.34 mm	Transmissive	Blue, Green, Red	TFT - Color
Kyocera International, Inc. TCG121SVLPAAFA-AA20	LED - White	184.5 mm	246 mm	0.31 mm	0.1 mm	LVDS	12.1 in	307.34 mm	Transmissive	Blue, Green, Red	TFT - Color

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color LVDS 12.1" (307.34mm) 1024 x 768 (XGA)

Technical documentation and resources

No documents available
