1241.6633.1124000
ActiveSCHURTER Inc.

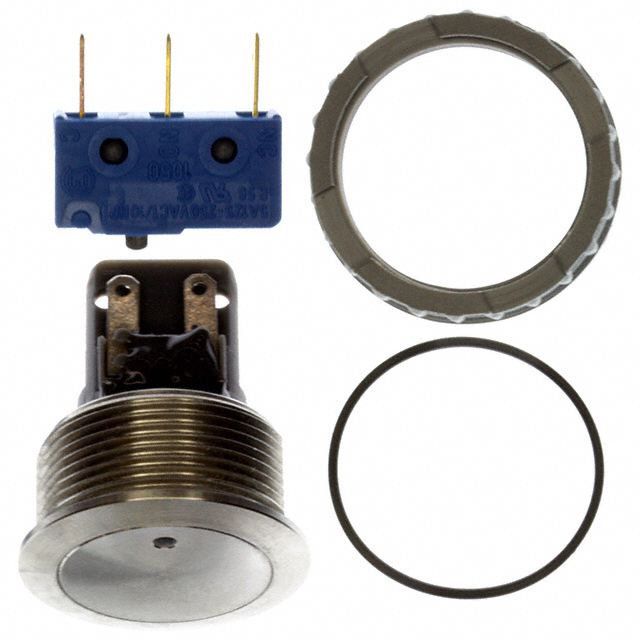

SWITCH PUSHBUTTON SPDT 5A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1241.6633.1124000
ActiveSCHURTER Inc.
SWITCH PUSHBUTTON SPDT 5A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1241.6633.1124000 | 1241.6633 Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Flush, Button, Round | Flush, Button, Round |
| Circuit | SPDT | SPDT |
| Color - Actuator/Cap | Silver | Silver |
| Current Rating (Amps) | 5 A | 5 - 100 A |
| Electrical Life | 200000 Cycles | 200000 Cycles |
| Illumination Type, Color | LED, Blue | LED, Blue, Green |
| Illumination Voltage (Nominal) | 3.7 VDC | 2.1 - 3.7 VDC |
| Ingress Protection | IP40 | IP40 |
| Mechanical Life | 1500000 Cycles | 1500000 Cycles |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions [diameter] | 22.1 mm | 22.1 mm |
| Switch Function | On-Mom | On-Mom |
| Termination Style | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) |
| Type | Anti-Vandal, Illuminated | Anti-Vandal, Illuminated |
| Voltage Rating - AC | 125 V | 125 V |
| Voltage Rating - DC | - | 30 V |
1241.6633 Series
SWITCH PUSHBUTTON SPDT 5A 125V
| Part | Current Rating (Amps) | Illumination Type, Color | Actuator Marking | Panel Cutout Dimensions [diameter] | Voltage Rating - AC | Type | Termination Style | Actuator Type | Electrical Life | Color - Actuator/Cap | Mounting Type | Circuit | Illumination Voltage (Nominal) | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Mechanical Life | Ingress Protection | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 1241.6633.1124000 | 5 A | Blue, LED | No Marking | 22.1 mm | 125 V | Anti-Vandal, Illuminated | Quick Connect - 0.110" (2.8mm) | Button, Flush, Round | 200000 Cycles | Silver | Panel Mount, Front | SPDT | 3.7 VDC | -25 °C | 85 °C | On-Mom | 1500000 Cycles | IP40 | |
SCHURTER Inc. 1241.6633.1112000 | 100 mA | Green, LED | No Marking | 22.1 mm | Anti-Vandal, Illuminated | Quick Connect - 0.110" (2.8mm) | Button, Flush, Round | 200000 Cycles | Silver | Panel Mount, Front | SPDT | 2.1 VDC | -25 °C | 85 °C | On-Mom | 1500000 Cycles | IP40 | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1241.6633 Series
Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
