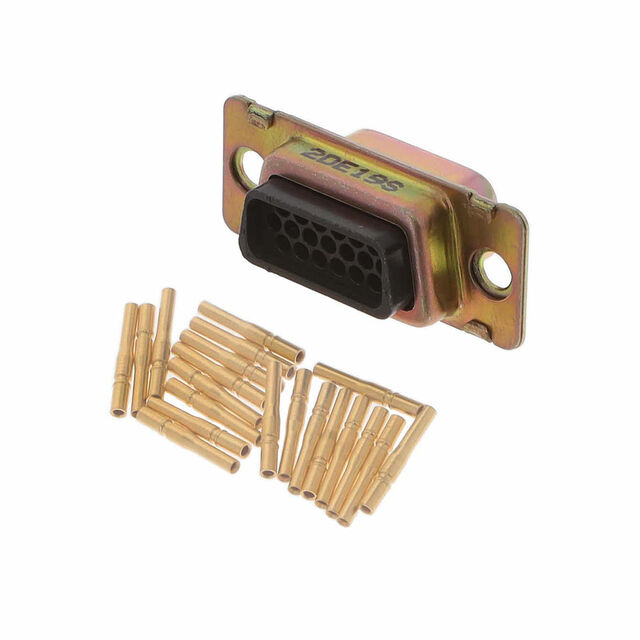

2DE19S
ActiveITT Cannon, LLC
CONN D-SUB RCPT 19P PNL MT CRIMP
2DE19S
ActiveITT Cannon, LLC
CONN D-SUB RCPT 19P PNL MT CRIMP
Description
General part information
2DE19S
19 Position D-Sub, Double Density Receptacle, Female Sockets Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | 2DE19S |
|---|---|
| Color | Black |
| Connector Layout | DE, Double Density, E |
| Connector Style | D-Sub, Double Density |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating | 5 A |
| Dielectric Material | Glass Filled, Polyamide (PA), Nylon |
| Finish | Yellow Chromate Plated Cadmium |
| Flange Feature | Shell (Unthreaded), Housing |
| Mounting Type | Panel Mount |
| Number of Positions | 19 |
| Number of Rows | 3 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Primary Material | Metal |
| Shell Material | Steel |
| Shell Size | 1 |
| Termination | Crimp |
