HFC02-1N8S-RC
ActiveAllied Components International
1.8NH +/- 0.3NH HI-FREQ CER CHIP
HFC02-1N8S-RC
ActiveAllied Components International
1.8NH +/- 0.3NH HI-FREQ CER CHIP
Description
General part information
HFC02-1N8S-RC

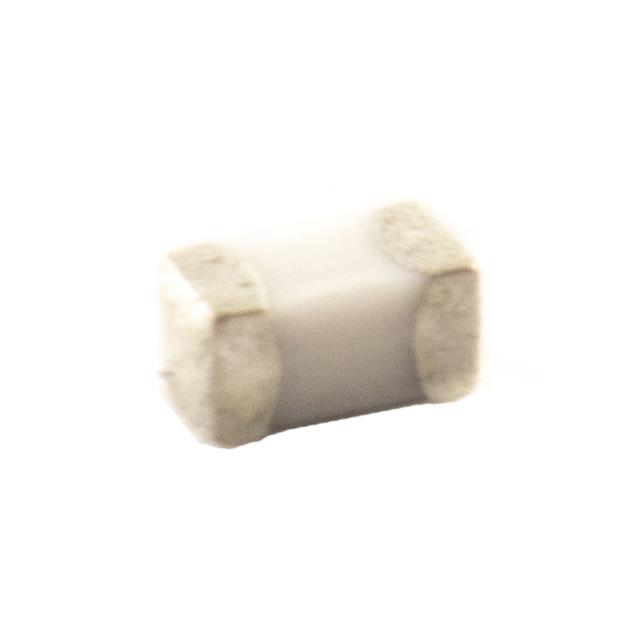

1.8 nH Unshielded Inductor 390 mA 160mOhm Max 0201 (0603 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | HFC02-1N8S-RC |
|---|---|
| Current Rating | 390 mA |
| DC Resistance (DCR) (Max) | 160 mOhm |
| Frequency - Self Resonant | 8 GHz |
| Height - Seated (Max) | 0.013 in |
| Inductance | 1.8 nH |
| Inductance Frequency - Test | 100 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0201 (0603 Metric) |
| Package Name | 0201 |
| Q | 4 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.024 in |
| Size / Dimension Width | 0.012 in |
| Tolerance | 0.3 nH |
