B59873C0120A070
ActiveEPCOS - TDK Electronics
PTC RESET FUSE 265V 70MA RADIAL
B59873C0120A070
ActiveEPCOS - TDK Electronics
PTC RESET FUSE 265V 70MA RADIAL
Description
General part information
B59873C0120A070

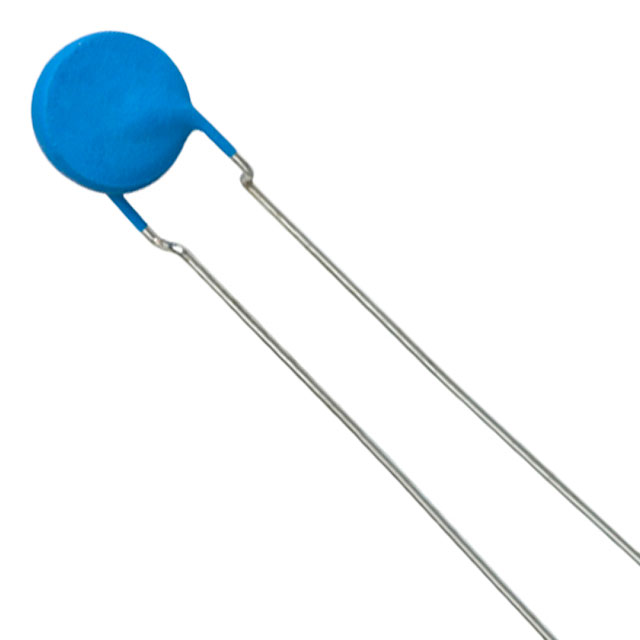

Ceramic PTC Resettable Fuse 265V 70 mA Ih Through Hole Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | B59873C0120A070 |
|---|---|
| Approval Agency | UR |
| Current - Hold (Ih) (Max) | 70 mA |
| Current - Max | 1 A |
| Current - Trip (It) | 140 mA |
| Height - Seated (Max) | 0.492 in |
| Lead Spacing | 0.197 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | 0 °C |
| Package / Case | Disc, Radial |
| Resistance - 25°C (Typ) | 45 Ohms |
| Size / Dimension Diameter | 0.354 in |
| Size / Dimension Thickness | 0.197 in |
| Type | Ceramic |
| Voltage - Max | 265 V |
