ES125A10-Z
ObsoleteNidec Components Corporation
SWITCH SLIDE SPST 25A 125V
ES125A10-Z
ObsoleteNidec Components Corporation
SWITCH SLIDE SPST 25A 125V
Description
General part information
ES125A10-Z

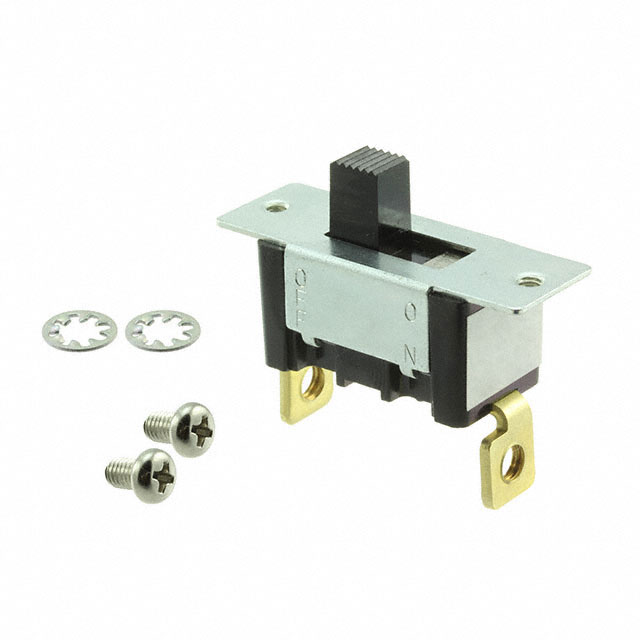

Slide Switch SPST Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | ES125A10-Z |
|---|---|
| Actuator Length | 9 mm |
| Actuator Type | Standard |
| Circuit | SPST |
| Contact Timing | Non-Shorting (BBM) |
| Current Rating | 25 A |
| Electrical Life (Cycles) | 20000 |
| Mounting Type | Panel Mount |
| Switch Function | On-Off |
| Switch Travel | 8 mm |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 125 V |
