ULV7F2HSS641

Active

E-Switch

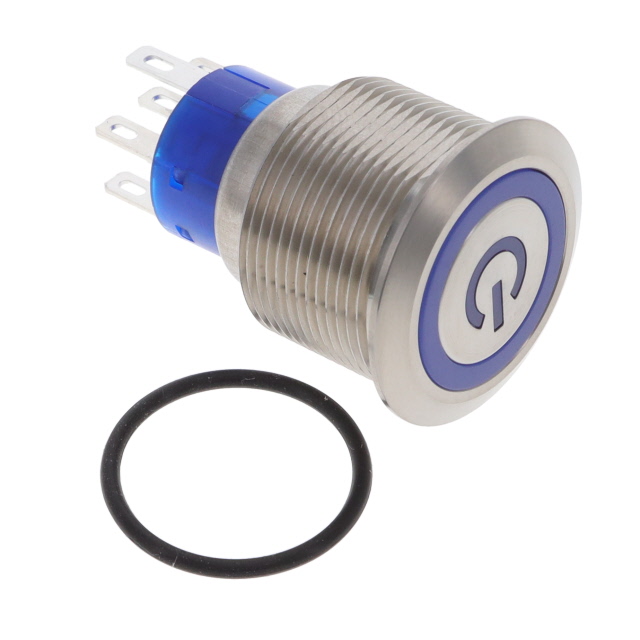

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

ULV7F2HSS641

Active

E-Switch

SWITCH PUSHBUTTON DPDT 3A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 18.35

Description

General part information

ULV7 Series

Pushbutton Switch DPDT Anti-Vandal, Illuminated Panel Mount, Front

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ULV7F2HSS641	ULV7 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round
Circuit	DPDT	SPDT, DPDT
Color - Actuator/Cap	Silver	Silver, Black
Current Rating (Amps)	3 A	3 A
Electrical Life	50000 Cycles	50000 Cycles
Illumination Type, Color	LED, Blue	LED, Green, Red, Blue, Yellow
Illumination Voltage (Nominal)	3 VDC	3 - 220 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles	500000 - 1000000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-20 C	-20 C
Panel Cutout Dimensions [diameter]	22.2 mm	22 - 22.2 mm
Switch Function	On-Mom	On-Mom, On-On
Termination Style	0.11 in	0.11 in
Termination Style	Quick Connect, Solder	Quick Connect, Solder, Wire Leads
Termination Style	2.8 mm	2.8 mm
Type	Anti-Vandal, Illuminated	Anti-Vandal, Illuminated
Voltage Rating - AC	125 V	125 - 250 V

ULV7 Series

SWITCH PUSHBUTTON SPDT 3A 250V

Part	Termination Style	Termination Style	Termination Style	Electrical Life	Voltage Rating - AC	Ingress Protection	Illumination Type, Color	Mounting Type	Illumination Voltage (Nominal)	Type	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Color - Actuator/Cap	Actuator Type	Circuit	Panel Cutout Dimensions [diameter]	Actuator Marking	Current Rating (Amps)
E-Switch ULV7F2BSS331	0.11 in	Quick Connect, Solder	2.8 mm	50000 Cycles	250 V	IP67 - Dust Tight, Waterproof	Green, LED	Panel Mount, Front	3 VDC	Anti-Vandal, Illuminated	1000000 Cycles	55 °C	-20 C	On-Mom	Silver	Button, Flush, Round	SPDT	22.2 mm	No Marking	3 A
E-Switch ULV7FPG11311				50000 Cycles	125 V	IP67 - Dust Tight, Waterproof	LED, Red	Panel Mount, Front	3 VDC	Anti-Vandal, Illuminated	500000 Cycles			On-On	Black	Button, Flush, Round	DPDT	22.2 mm	No Marking	3 A
E-Switch ULV7F2BSS341	0.11 in	Quick Connect, Solder	2.8 mm	50000 Cycles	125 V	IP67 - Dust Tight, Waterproof	Blue, LED	Panel Mount, Front	3 VDC	Anti-Vandal, Illuminated	1000000 Cycles	55 °C	-20 C	On-Mom	Silver	Button, Flush, Round	SPDT	22 mm		3 A
E-Switch ULV7F2G11331	0.11 in	Quick Connect, Solder	2.8 mm	50000 Cycles	125 V	IP67 - Dust Tight, Waterproof	Green, LED	Panel Mount, Front	3 VDC	Anti-Vandal, Illuminated	1000000 Cycles	55 °C	-20 C	On-On	Black	Button, Flush, Round	DPDT	22 mm		3 A
E-Switch ULV7F23SS311	0.11 in	Quick Connect, Solder	2.8 mm	50000 Cycles	250 V	IP67 - Dust Tight, Waterproof	LED, Red	Panel Mount, Front	3 VDC	Anti-Vandal, Illuminated	500000 Cycles	55 °C	-20 C	On-On	Silver	Button, Flush, Round	SPDT	22.2 mm	No Marking	3 A
E-Switch ULV7F2HSLL16L21	0.11 in	Quick Connect, Solder	2.8 mm	50000 Cycles	125 V	IP67 - Dust Tight, Waterproof	LED, Red	Panel Mount, Front		Anti-Vandal, Illuminated	1000000 Cycles	55 °C	-20 C	On-Mom	Silver	Button, Flush, Round	DPDT	22 mm	No Marking	3 A
E-Switch ULV7F2GSS341	0.11 in	Quick Connect, Solder	2.8 mm	50000 Cycles	250 V	IP67 - Dust Tight, Waterproof	Blue, LED	Panel Mount, Front	3 VDC	Anti-Vandal, Illuminated	500000 Cycles	55 °C	-20 C	On-On	Silver	Button, Flush, Round	DPDT	22.2 mm	No Marking	3 A
E-Switch ULV7FPBSS331				50000 Cycles	125 V	IP67 - Dust Tight, Waterproof	Green, LED	Panel Mount, Front	3 VDC	Anti-Vandal, Illuminated	1000000 Cycles			On-Mom	Silver	Button, Flush, Round	SPDT	22.2 mm	No Marking	3 A
E-Switch ULV7F2H11341	0.11 in	Quick Connect, Solder	2.8 mm	50000 Cycles	250 V	IP67 - Dust Tight, Waterproof	Blue, LED	Panel Mount, Front	3 VDC	Anti-Vandal, Illuminated	1000000 Cycles	55 °C	-20 C	On-Mom	Black	Button, Flush, Round	DPDT	22.2 mm	No Marking	3 A
E-Switch ULV7FPGSS341				50000 Cycles	125 V	IP67 - Dust Tight, Waterproof	Blue, LED	Panel Mount, Front	3 VDC	Anti-Vandal, Illuminated	500000 Cycles			On-On	Silver	Button, Flush, Round	DPDT	22.2 mm	No Marking	3 A
