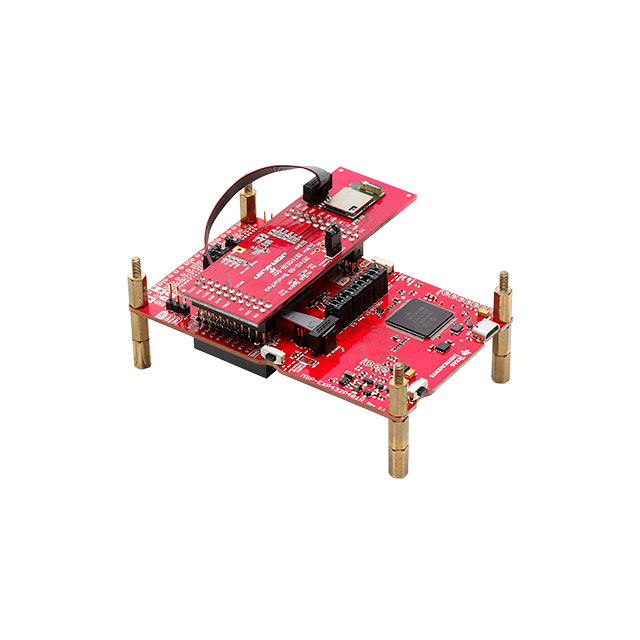

ZB7412E0BA

Active

Jorjin Technologies Inc.

EVALUATION BOARD FOR ZB7412-00

Search across all available documentation for this part.

Active

Jorjin Technologies Inc.

EVALUATION BOARD FOR ZB7412-00

Technical Specifications

Parameters and characteristics for this part

Specification	ZB7412E0BA

For Use With/Related Products	ZB7412-00
Frequency	2.4 GHz
Supplied Contents	Board(s)
Type	Transceiver, Bluetooth® 5.x (BLE)

Part	Package / Case	Data Rate	Frequency [Min]	Frequency [Max]	Antenna Type	Utilized IC / Part	Sensitivity	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Protocol	Power - Output	Current - Transmitting [Max]	Current - Transmitting [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Modulation	Memory Size	RF Family/Standard	Serial Interfaces	Current - Receiving	Frequency	Supplied Contents	For Use With/Related Products	Type
Jorjin Technologies Inc. ZB7412-00	25-LGA Module	2 Mbps	2.4 GHz	2.4835 GHz	Integrated Chip	TI CC2640R2F	-102 dBm	85 °C	-40 °C	Surface Mount	Bluetooth v4.2 Bluetooth v5.0	5.6 dBm	9.4 mA	6.8 mA	1.8 V	3.8 V	GFSK	28 kB 128 kB	Bluetooth	ADC GPIO I2C I2S SPI UART	6.2 mA
Jorjin Technologies Inc. ZB7412E0BA																						2.4 GHz	Board(s)	ZB7412-00	Bluetooth® 5.x (BLE) Transceiver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 75.75

General part information

ZB7412-00 - Transceiver; Bluetooth® 5.x (BLE) 2.4GHz Evaluation Board
