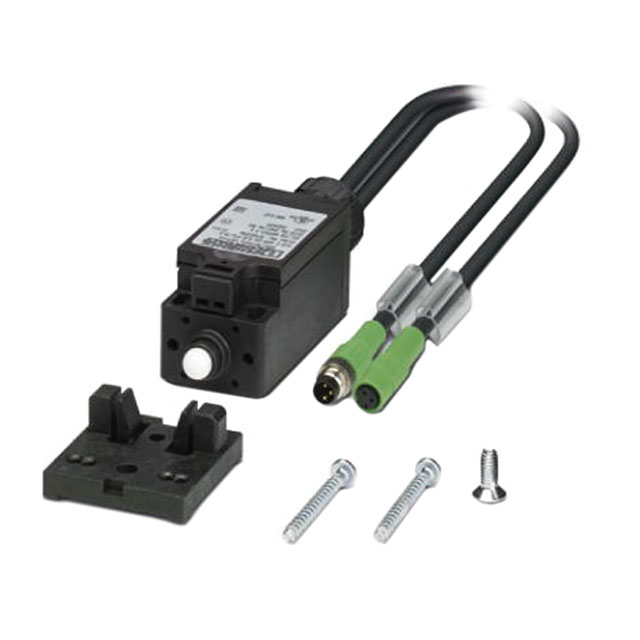

2702337
ObsoletePhoenix Contact
SWITCH SNAP ACT SPST-NO 3A 24V
2702337
ObsoletePhoenix Contact
SWITCH SNAP ACT SPST-NO 3A 24V
Description
General part information
2702337
Switch SPST-NO Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 2702337 |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Cable Length | 1 m |
| Circuit | SPST-NO |
| Current Rating | 3 A |
| Features | Cable Length |
| Ingress Protection Description | Water Resistant, Dust Protected |
| Ingress Protection IP Rating | IP54 |
| Mechanical Life (Cycles) | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -30 °C |
| Switch Function | Off-Mom |
| Termination Style | Cable with Connector |
| Voltage Rating - DC | 24 V |
