DE3FW

Active

Switchcraft Inc.

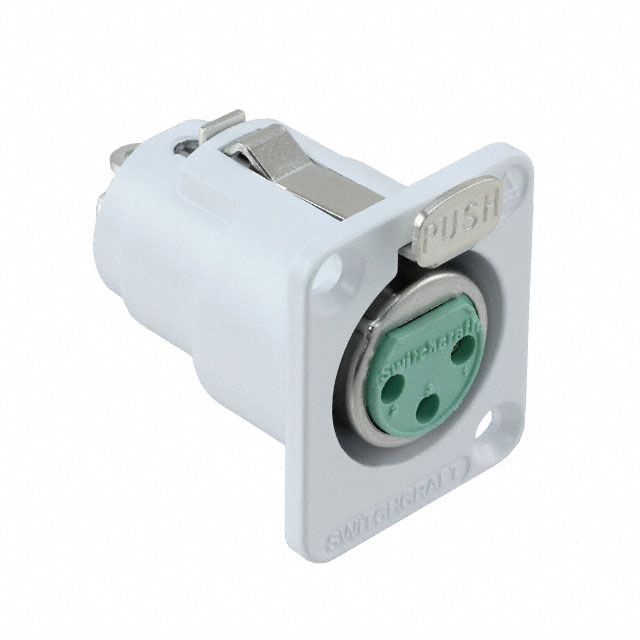

XLR CONNECTORS DE 3F XLR/SLV S, FEMALE,WHITE

Search across all available documentation for this part.

Active

Switchcraft Inc.

XLR CONNECTORS DE 3F XLR/SLV S, FEMALE,WHITE

Technical Specifications

Parameters and characteristics commom to parts in this series

XLR CONNECTORS DE 3F XLR/SLV S, FEMALE,WHITE

Part	Insert Material	Fastening Type	Contact Material	Orientation	Shell Size - Insert	Shell Material	Connector Type	Color	Features	Contact Finish - Mating	Applications	Primary Material	Mounting Feature
Switchcraft Inc. DE3FW	Thermoplastic	Latch Lock	Copper Alloy	Keyed	XLR	Stainless Steel	Female Sockets, Plug	White	Ground	Silver	Audio, Instrumentation	Metal	Flange
Switchcraft Inc. DE3FBAU	Thermoplastic	Latch Lock	Copper Alloy	Keyed	XLR	Stainless Steel	Female Sockets, Plug	Black	Ground	Gold	Audio, Instrumentation	Metal	Flange
Switchcraft Inc. DE3FB	Thermoplastic	Latch Lock	Copper Alloy	Keyed	XLR	Stainless Steel	Female Sockets, Plug	Black	Ground	Silver	Audio, Instrumentation	Metal	Flange
Switchcraft Inc. DE3FPKG	Thermoplastic	Latch Lock	Copper Alloy	Keyed	XLR	Stainless Steel	Female Sockets, Plug	Silver	Ground	Silver	Audio, Instrumentation	Metal	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Female Sockets Solder Cup

Technical documentation and resources
