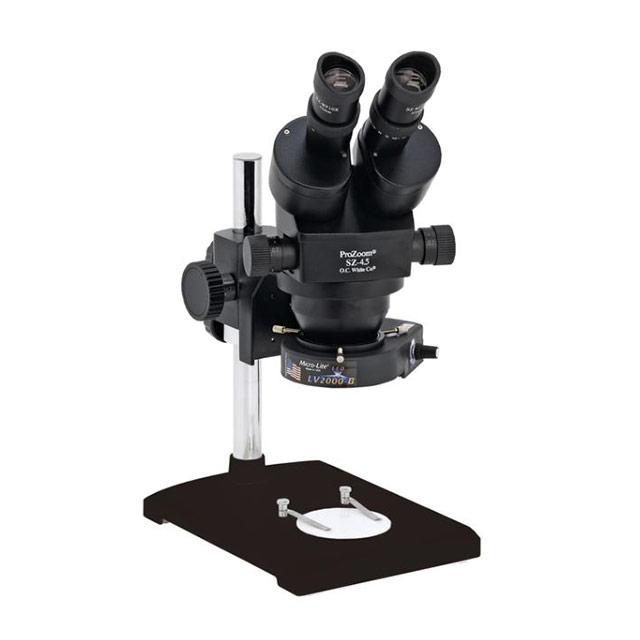

TKSZ-L-LV2

Active

O.C. White Co.

MICRO STEREO ZM 7X-45X W/LIGHT

Search across all available documentation for this part.

Active

O.C. White Co.

MICRO STEREO ZM 7X-45X W/LIGHT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TKSZ-L-LV2	TKSZ Series

Illumination	LED	LED, Fluorescent Ring Light
Includes	Eyepiece, Lens, Base, Arm	Eyepiece, Lens, Base, Arm
Magnification Range [Max]	45 x	45 x
Magnification Range [Min]	7 x	7 x
Type	Microscope, Stereo Zoom (Binocular)	Microscope, Stereo Zoom (Binocular)
Working Distance [Max]	9.84 "	9.84 "
Working Distance [Max]	250 mm	250 mm
Working Distance [Min]	3.54 "	3.54 "
Working Distance [Min]	90 mm	90 mm

MICRO STEREO ZM 7X-45X W/LIGHT

Part	Type	Illumination	Magnification Range [Min]	Magnification Range [Max]	Includes	Working Distance [Min]	Working Distance [Max]	Working Distance [Max]	Working Distance [Min]
O.C. White Co. TKSZ-L-LV2	Microscope, Stereo Zoom (Binocular)	LED	7 x	45 x	Arm, Base, Eyepiece, Lens	3.54 "	9.84 "	250 mm	90 mm
O.C. White Co. TKSZ-F	Microscope, Stereo Zoom (Binocular)	Fluorescent Ring Light	7 x	45 x	Arm, Base, Eyepiece, Lens	3.54 "	9.84 "	250 mm	90 mm
O.C. White Co. TKSZ-LV2	Microscope, Stereo Zoom (Binocular)	LED	7 x	45 x	Arm, Base, Eyepiece, Lens	3.54 "	9.84 "	250 mm	90 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1350.01

General part information

Microscope, Stereo Zoom (Binocular) 7x ~ 45x LED
