796639-4
ActiveTE Connectivity AMP Connectors

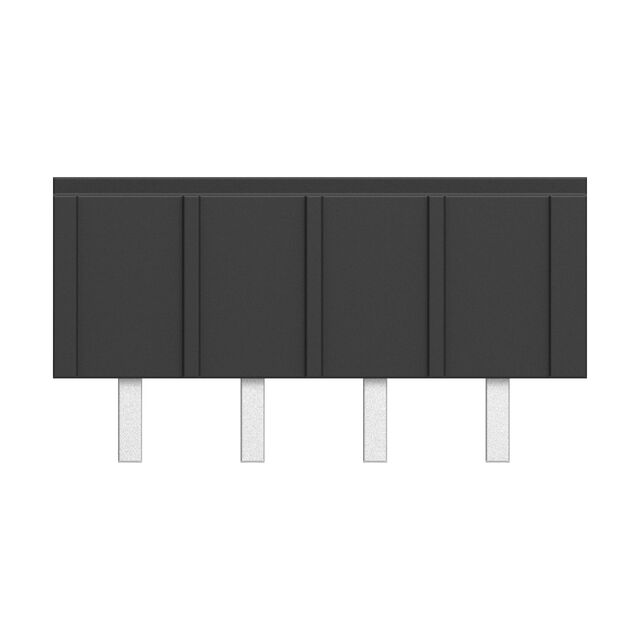

TERM BLOCK HDR 4POS 90DEG 5.08MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
796639-4
ActiveTE Connectivity AMP Connectors
TERM BLOCK HDR 4POS 90DEG 5.08MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 796639-4 | 796639 Series |
|---|---|---|
| Color | Black | Black |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Mating Finish | Tin | Tin |
| Contact Tail Length | 3.5 mm | 3.5 mm |
| Contact Tail Length | 0.138 in | 0.138 in |
| Header Orientation | 90°, Right Angle | 90°, Right Angle |
| Insulation Height | 8.36 mm | 8.36 mm |
| Insulation Height | 0.329 in | 0.329 in |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Levels | 1 | 1 |
| Number of Positions | 4 | 4 - 21 |
| Operating Temperature [Max] | 110 °C | 110 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 0.2 in | 0.2 in |
| Pitch [x] | 5.08 mm | 5.08 mm |
| Positions Per Level | 4 | 4 - 21 |
| Termination Style | Solder | Solder |
| Type | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (4 Side) |
| Voltage - UL | 300 V | 300 V |
796639 Series
TERM BLOCK HDR 8POS 90DEG 5.08MM
| Part | Number of Positions | Number of Levels | Header Orientation | Material Flammability Rating | Color | Positions Per Level | Contact Tail Length | Contact Tail Length | Contact Mating Finish | Insulation Height | Insulation Height | Mounting Type | Voltage - UL | Contact Material | Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 796639-8 | 8 | 1 | 90°, Right Angle | UL94 V-0 | Black | 8 | 3.5 mm | 0.138 in | Tin | 8.36 mm | 0.329 in | Through Hole | 300 V | Copper Alloy | Header, Male Pins, Shrouded (4 Side) | -40 °C | 110 °C | Solder | 0.2 in | 5.08 mm |
TE Connectivity AMP Connectors 2-796639-0 | 20 | 1 | 90°, Right Angle | UL94 V-0 | Black | 20 | 3.5 mm | 0.138 in | Tin | 8.36 mm | 0.329 in | Through Hole | 300 V | Copper Alloy | Header, Male Pins, Shrouded (4 Side) | -40 °C | 110 °C | Solder | 0.2 in | 5.08 mm |
TE Connectivity AMP Connectors 796639-4 | 4 | 1 | 90°, Right Angle | UL94 V-0 | Black | 4 | 3.5 mm | 0.138 in | Tin | 8.36 mm | 0.329 in | Through Hole | 300 V | Copper Alloy | Header, Male Pins, Shrouded (4 Side) | -40 °C | 110 °C | Solder | 0.2 in | 5.08 mm |
TE Connectivity AMP Connectors 1-796639-7 | 1 | 90°, Right Angle | UL94 V-0 | Black | 17 | 3.5 mm | 0.138 in | Tin | 8.36 mm | 0.329 in | Through Hole | 300 V | Copper Alloy | Header, Male Pins, Shrouded (4 Side) | -40 °C | 110 °C | Solder | 0.2 in | 5.08 mm | |
TE Connectivity AMP Connectors 2-796639-1 | 21 | 1 | 90°, Right Angle | UL94 V-0 | Black | 21 | 3.5 mm | 0.138 in | Tin | 8.36 mm | 0.329 in | Through Hole | 300 V | Copper Alloy | Header, Male Pins, Shrouded (4 Side) | -40 °C | 110 °C | Solder | 0.2 in | 5.08 mm |
TE Connectivity AMP Connectors 796639-7 | 7 | 1 | 90°, Right Angle | UL94 V-0 | Black | 7 | 3.5 mm | 0.138 in | Tin | 8.36 mm | 0.329 in | Through Hole | 300 V | Copper Alloy | Header, Male Pins, Shrouded (4 Side) | -40 °C | 110 °C | Solder | 0.2 in | 5.08 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.10 | |
| 10 | $ 1.03 | |||
| 25 | $ 0.99 | |||
| 50 | $ 0.98 | |||
| 150 | $ 0.89 | |||
| 300 | $ 0.86 | |||
| 600 | $ 0.78 | |||
| 1050 | $ 0.70 | |||
| 5100 | $ 0.63 | |||
Description
General part information
796639 Series
4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
