CCSMA1-MM-SS402-12
ActiveCrystek Corporation
CBL ASSY SMA PLUG TO PLUG 12"
CCSMA1-MM-SS402-12
ActiveCrystek Corporation
CBL ASSY SMA PLUG TO PLUG 12"
Description
General part information
CCSMA1-MM-SS402-12

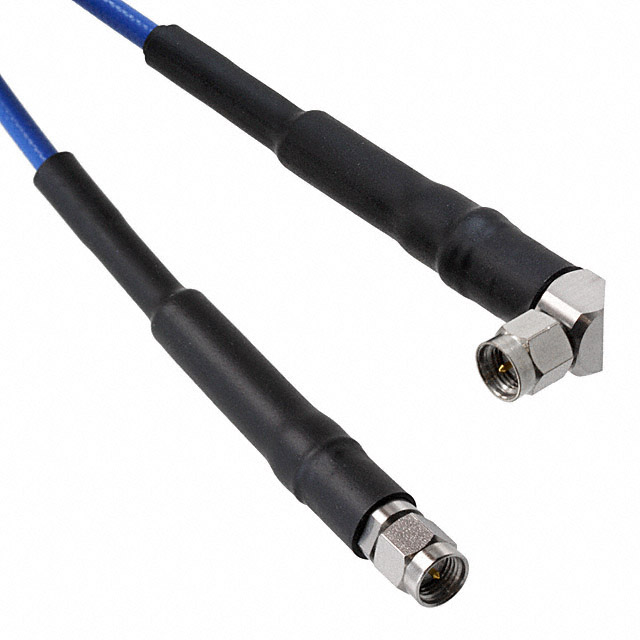

Cable Assembly Coaxial SMA to SMA 4.14mm OD Coaxial Cable 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | CCSMA1-MM-SS402-12 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Outer Diameter | 4.14 mm |
| Cable Type | Coaxial Cable, OD Coaxial Cable |
| Cable Type Size | 4.14 |
| Color | Blue |
| Features | Stainless Steel, Shielded |
| Frequency - Max | 18 GHz |
| Length | 12 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -45 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA |
