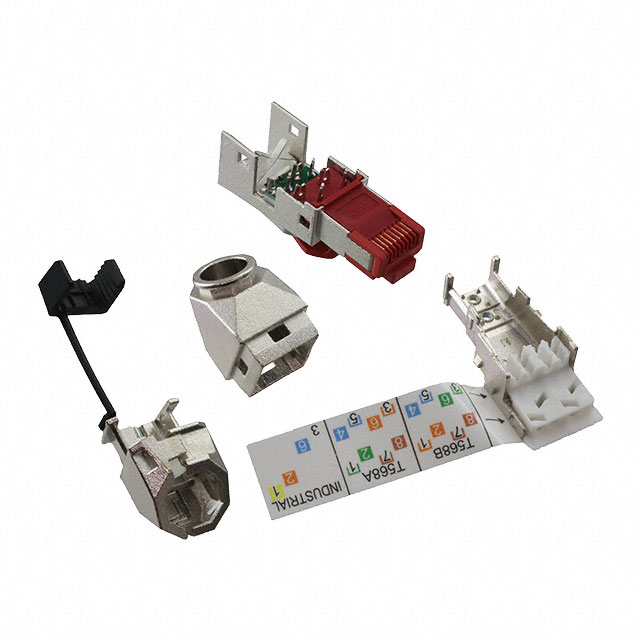

130G405042-E

Active

METZ CONNECT USA Inc.

25G RJ45 FIELD PLUG PRO 360

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

25G RJ45 FIELD PLUG PRO 360

Technical Specifications

Parameters and characteristics for this part

Specification	130G405042-E

Cable Type	Round Cable, Solid, Stranded Wires
Color	Red
Connector Type	Plug
Contact Finish	Gold
Contact Material	Tin Bronze
Features	Housing, Strain Relief, Locking Hook, Angled - 90°
Housing Material	Zinc Die Cast
Length	61.7 mm
Length	2.429 in
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Shielding	Shielded
Termination	IDC
Voltage Rating	50 V
Wire Gauge [Max]	27 AWG
Wire Gauge [Min]	22 AWG

25G RJ45 FIELD PLUG PRO 360

Part	Termination	Length	Length	Wire Gauge [Min]	Wire Gauge [Max]	Shielding	Connector Type	Contact Finish	Number of Positions/Contacts	Housing Material	Features	Cable Type	Voltage Rating	Contact Material	Color
METZ CONNECT USA Inc. 130G405042-E	IDC	61.7 mm	2.429 in	22 AWG	27 AWG	Shielded	Plug	Gold	8p8c (RJ45, Ethernet)	Zinc Die Cast	Angled - 90°, Housing, Locking Hook, Strain Relief	Round Cable, Solid, Stranded Wires	50 V	Tin Bronze	Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 30.66

General part information

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded IDC
