PI3PD22919GBEX

Obsolete

Diodes Inc

IC PWR SWITCH N-CHAN 1:1 8CSP

Search across all available documentation for this part.

Obsolete

Diodes Inc

IC PWR SWITCH N-CHAN 1:1 8CSP

Technical Specifications

Parameters and characteristics for this part

Specification	PI3PD22919GBEX

Current - Output (Max) [Max]	4 A
Features	Slew Rate Controlled, Load Discharge
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	N-Channel
Package / Case	8-XFBGA, CSPBGA
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	7.1 mOhm
Supplier Device Package	8-CSP
Supplier Device Package [x]	0.9
Supplier Device Package [y]	1.9
Switch Type	General Purpose
Voltage - Load [Max]	3.6 V
Voltage - Load [Min]	0.75 V
Voltage - Supply (Vcc/Vdd)	False

Part	Features	Rds On (Typ)	Ratio - Input:Output [custom]	Output Configuration	Voltage - Supply (Vcc/Vdd)	Interface	Switch Type	Operating Temperature [Min]	Operating Temperature [Max]	Input Type	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Current - Output (Max) [Max]	Number of Outputs	Mounting Type	Output Type	Voltage - Load [Min]	Voltage - Load [Max]	Package / Case
Diodes Inc PI3PD22919GBEX	Load Discharge Slew Rate Controlled	7.1 mOhm	1:1	High Side		On/Off	General Purpose	-40 °C	125 ¯C	Non-Inverting	0.9	1.9	8-CSP	4 A	1	Surface Mount	N-Channel	0.75 V	3.6 V	8-XFBGA CSPBGA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

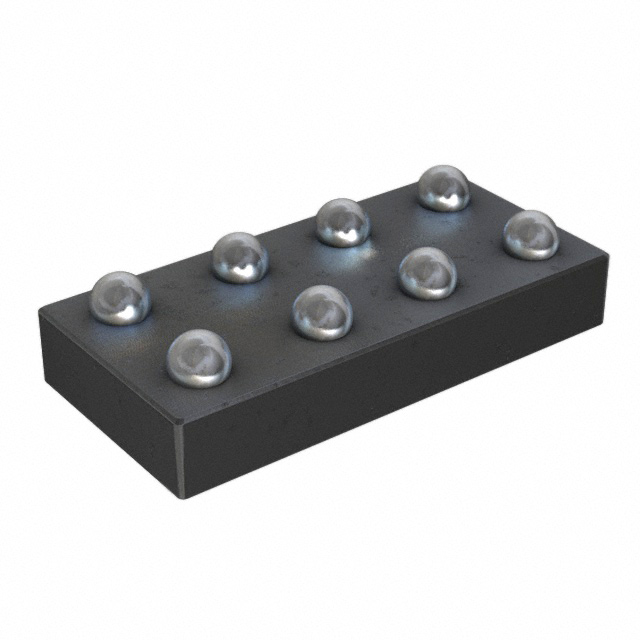

Power Switch/Driver 1:1 N-Channel 4A 8-CSP (0.9x1.9)
