FMCA2955-100CM
ActiveFairview Microwave
CBL ASSY SMAPLUG-SMAJACK 39.3701
FMCA2955-100CM
ActiveFairview Microwave
CBL ASSY SMAPLUG-SMAJACK 39.3701
Description
General part information
FMCA2955-100CM

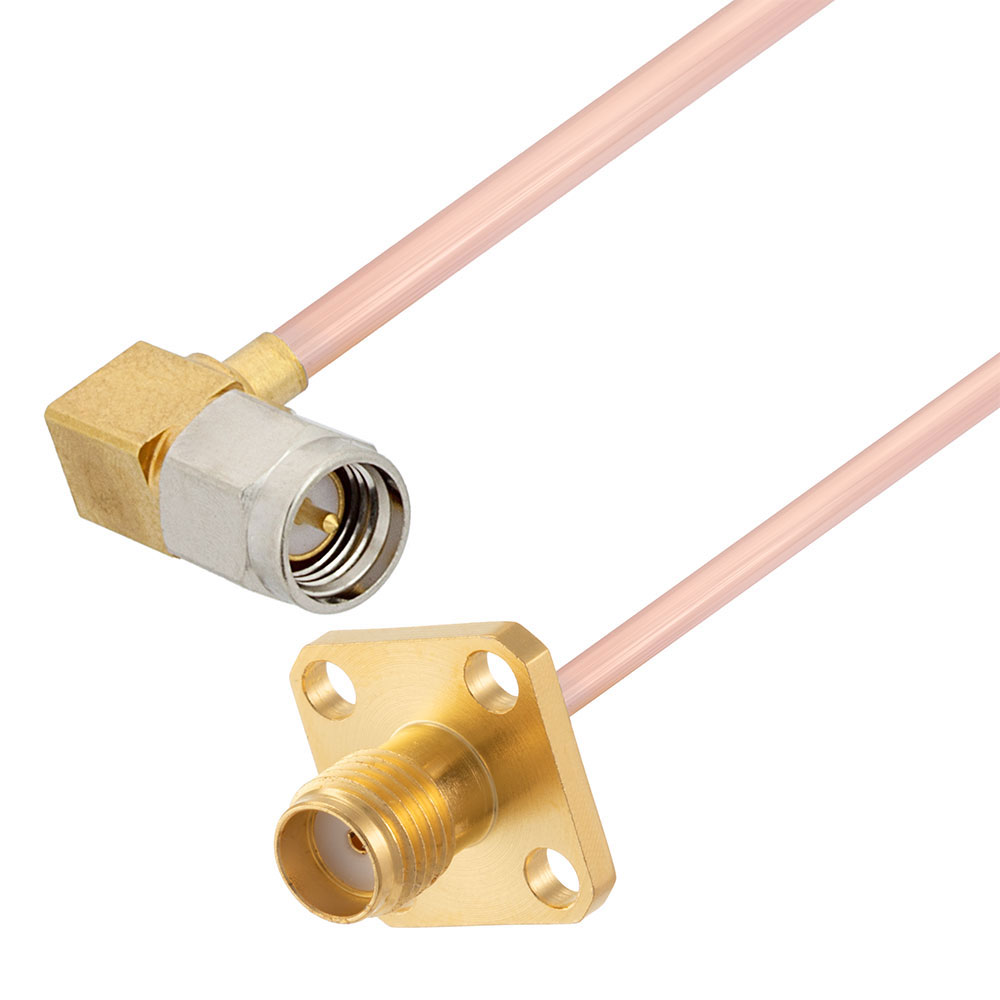

Cable Assembly Coaxial SMA to SMA Hand Formable .047 39.4" (1.0m) 3.3'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2955-100CM |
|---|---|
| 1st Connector | SMA Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Jack |
| 2nd Connector Mounting Feature | Flange |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | Hand Formable |
| Cable Type Size | 0.047 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 12.4 GHz |
| Length | 39.4 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA |
