PRA.M1.0GL.LC39G
ActiveLEMO

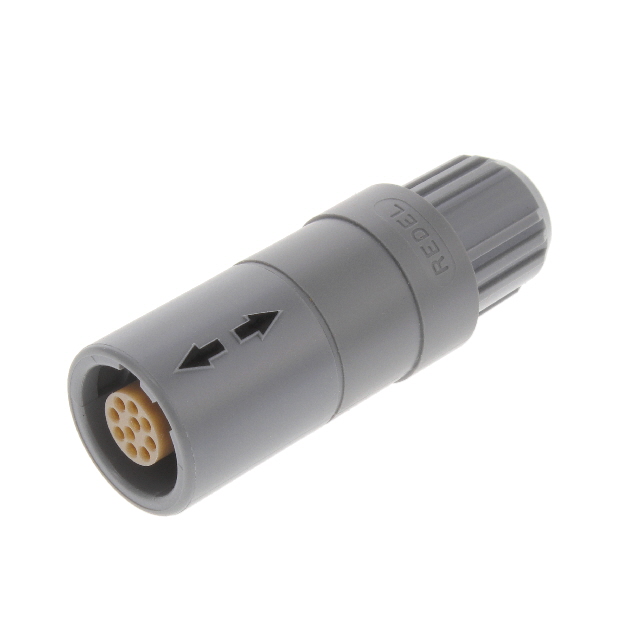

CONN RCPT FMALE 10P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PRA.M1.0GL.LC39G
ActiveLEMO
CONN RCPT FMALE 10P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PRA.M1.0GL.LC39G | PRA.M1 Series |
|---|---|---|
| Applications | Medical, Industrial, Automotive, Testing Equipment & Measurement | Medical, Industrial, Automotive, Testing Equipment & Measurement |
| Backshell Material, Plating | Polysulfone (PSU) | Polysulfone (PSU) |
| Cable Opening | - | 0.209 - 0.256 in |
| Cable Opening | - | 5.3 - 6.5 mm |
| Cable Opening | - | 0.157 in |
| Cable Opening | - | 0.205 in |
| Cable Opening | - | 4 mm |
| Cable Opening | - | 5.2 mm |
| Cable Opening [Max] [diameter] | 0.154 in | 0.154 in |
| Cable Opening [Max] [diameter] | 3.9 mm | 3.9 mm |
| Cable Opening [Min] [diameter] | 2.7 mm | 2.7 mm |
| Cable Opening [Min] [diameter] | 0.106 in | 0.106 in |
| Color | Gray | Gray, Red, Blue |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Detent Lock, Push-Pull | Detent Lock, Push-Pull |
| Features | Backshell | Backshell |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 10 | 10 |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -50 °C | -50 °C |
| Orientation | A | A |
| Primary Material | Plastic | Plastic |
| Shell Material | Polysulfone (PSU) | Polysulfone (PSU) |
| Shell Size - Insert | M10 | M10 |
| Shielding | Unshielded | Unshielded |
PRA.M1 Series
CONN RCPT FMALE 10P SOLDER CUP
| Part | Cable Opening [custom] | Cable Opening [custom] | Color | Applications | Orientation | Shielding | Primary Material | Current Rating (Amps) | Features | Shell Material | Number of Positions | Backshell Material, Plating | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Fastening Type | Mounting Type | Shell Size - Insert | Contact Finish - Mating | Insert Material | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO PRA.M1.0GL.LC65R | 0.209 in, 0.256 in | 5.3 mm, 6.5 mm | Gray, Red | Automotive, Industrial, Medical, Testing Equipment & Measurement | A | Unshielded | Plastic | 3 A | Backshell | Polysulfone (PSU) | 10 | Polysulfone (PSU) | Receptacle, Female Sockets | 150 °C | -50 °C | IP50 | Detent Lock, Push-Pull | Free Hanging (In-Line) | M10 | Gold | Polyetheretherketone (PEEK) | ||||||||
LEMO PRA.M1.0GL.LC39A | Blue, Gray | Automotive, Industrial, Medical, Testing Equipment & Measurement | A | Unshielded | Plastic | 3 A | Backshell | Polysulfone (PSU) | 10 | Polysulfone (PSU) | Receptacle, Female Sockets | 150 °C | -50 °C | IP50 | Detent Lock, Push-Pull | Free Hanging (In-Line) | M10 | Gold | Polyetheretherketone (PEEK) | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in | ||||||
LEMO PRA.M1.0GL.LC39G | Gray | Automotive, Industrial, Medical, Testing Equipment & Measurement | A | Unshielded | Plastic | 3 A | Backshell | Polysulfone (PSU) | 10 | Polysulfone (PSU) | Receptacle, Female Sockets | 150 °C | -50 °C | IP50 | Detent Lock, Push-Pull | Free Hanging (In-Line) | M10 | Gold | Polyetheretherketone (PEEK) | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in | ||||||
LEMO PRA.M1.0GL.LC52G | Gray | Automotive, Industrial, Medical, Testing Equipment & Measurement | A | Unshielded | Plastic | 3 A | Backshell | Polysulfone (PSU) | 10 | Polysulfone (PSU) | Receptacle, Female Sockets | 150 °C | -50 °C | IP50 | Detent Lock, Push-Pull | Free Hanging (In-Line) | M10 | Gold | Polyetheretherketone (PEEK) | 0.157 in | 0.205 in | 4 mm | 5.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 52.39 | |
| 10 | $ 40.58 | |||
| 25 | $ 36.84 | |||
| 50 | $ 34.31 | |||
| 100 | $ 32.02 | |||
| 250 | $ 29.33 | |||
Description
General part information
PRA.M1 Series
10 Position Circular Connector Receptacle, Female Sockets Solder Cup
