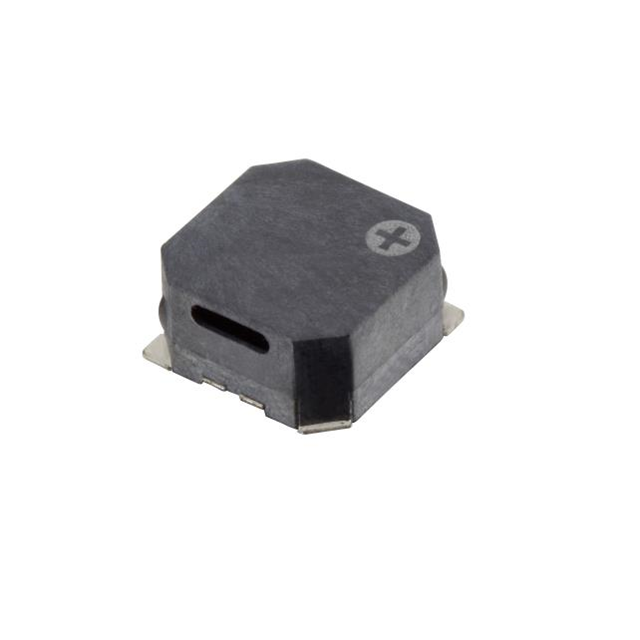

SFM-8527-03
ActiveEast Electronics
BUZZER 3V 0.343" L X 0.343" W TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SFM-8527-03
ActiveEast Electronics
BUZZER 3V 0.343" L X 0.343" W TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SFM-8527-03 |
|---|---|
| Current - Supply | 80 mA |
| Frequency | 2.73 kHz |
| Height - Seated (Max) [Max] [z] | 3.2 mm |
| Height - Seated (Max) [Max] [z] | 0.126 in |
| Mounting Type | Through Hole |
| Operating Mode | Continuous |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Size / Dimension [x] | 0.343 in |
| Size / Dimension [x] | 8.7 mm |
| Size / Dimension [y] | 8.7 mm |
| Size / Dimension [y] | 0.343 in |
| Sound Pressure Level (SPL) | 80 dB |
| Termination | PC Pins |
| Voltage - Rated | 3 VDC |
| Voltage Range [Max] | 5 VDC |
| Voltage Range [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.36 | |
| 100 | $ 2.22 | |||
| 1000 | $ 1.81 | |||
Description
General part information
SFM-8527 Series
Buzzers 3 V 80mA 2.73kHz 80dB @ 3V, 10cm Through Hole PC Pins
