111355-8

Connectors, Interconnects

111355-8

Active

TE Connectivity AMP Connectors

HEADERS & WIRE HOUSINGS 40 PDL BRD COVER

111355-8

Connectors, Interconnects

111355-8

Active

TE Connectivity AMP Connectors

HEADERS & WIRE HOUSINGS 40 PDL BRD COVER

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	111355-8

Accessory Type	Cap (Cover)
For Use With/Related Products	AMP-LATCH Series
Number of Positions	40

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$	Updated

Digikey	Bulk	2520	$ 8.96	<1d
Mouser	N/A	2520	$ 6.92	30d+
Newark	Each	500	$ 7.54	30d+

CAD

3D models and CAD resources for this part

Description

General part information

AMP-LATCH Series

Strain Relief Cover, Black, Glass-Filled Polyester, 40 Position

Documents

Technical documentation and resources

111355-8 | Datasheet

Datasheet

Digital Datasheet

ENG_CD_111355_A.pdf

Product Drawings

AMP-LATCH Series

...

Part	Cable Termination	Contact Finish	Number of Rows	Features	Mounting Type	Cable Pitch	Contact Finish Thickness	Board-Side Pitch	Wire Gauge	Row Spacing	Number of Positions	Color	Connector Type	Number of Positions Loaded	Contact Finish - Post	Style	Current Rating (Per Contact)	Insulation Height	Contact Shape	Shrouding	Contact Length - Mating	Fastening Type	Insulation Material	Insulation Color	Contact Length - Post	Row Spacing - Mating	Contact Material	Pitch - Mating	Material Flammability Rating	Contact Finish Thickness - Mating	Termination	Operating Temperature (Max)	Operating Temperature (Min)	Contact Type	Voltage Rating	Contact Finish - Mating	Contact Finish Thickness - Post	For Use With/Related Products	Accessory Type
TE Connectivity AMP Connectors 746610-9	IDC	Tin-Lead	2	Feed Through	Through Hole	0.05 in	100 µin	0.1 in	26-28 AWG 26-30 AWG Solid Stranded	0.1 in	40	Black	DIP Header Ribbon Cable	All
TE Connectivity AMP Connectors 2-111382-0	IDC	Gold	2	Feed Through	Press-Fit Through Hole	0.05 in	5 µin	0.1 in	26-30 AWG 28 AWG Solid Stranded	0.1 in	50	Black	DIP Header Ribbon Cable

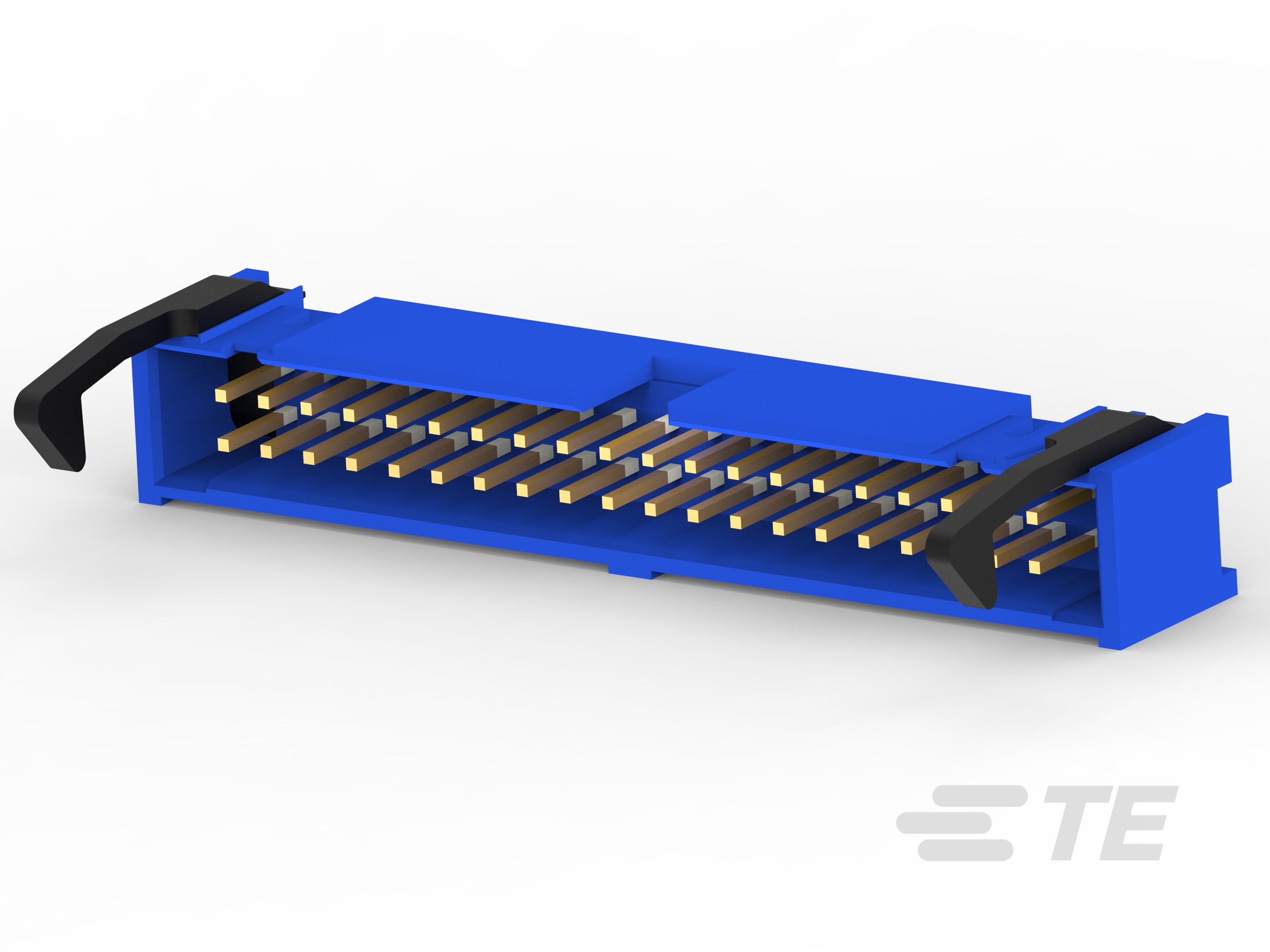

TE Connectivity AMP Connectors 3-1761606-3			2	Keying Slot	Through Hole						40		Header	All	Tin	Board Cable/Wire	1 A	0.404 in	Square	Shrouded - 4 Wall	0.237 in	Latch Lock/Eject Hooks Long	Polybutylene Terephthalate (PBT)	Blue	0.102 in	0.1 in	Phosphor Bronze	0.1 in	UL94 V-0	30 µin	Solder	105 °C	-65 °C	Male Pin	250 V	Gold Gold-Palladium
TE Connectivity AMP Connectors 5-216093-0	IDC	Tin	2	Feed Through	Through Hole	0.05 in	118.1 µin	0.1 in	26-30 AWG 28 AWG Solid Stranded	0.1 in	50	Gray	DIP Header Ribbon Cable	All

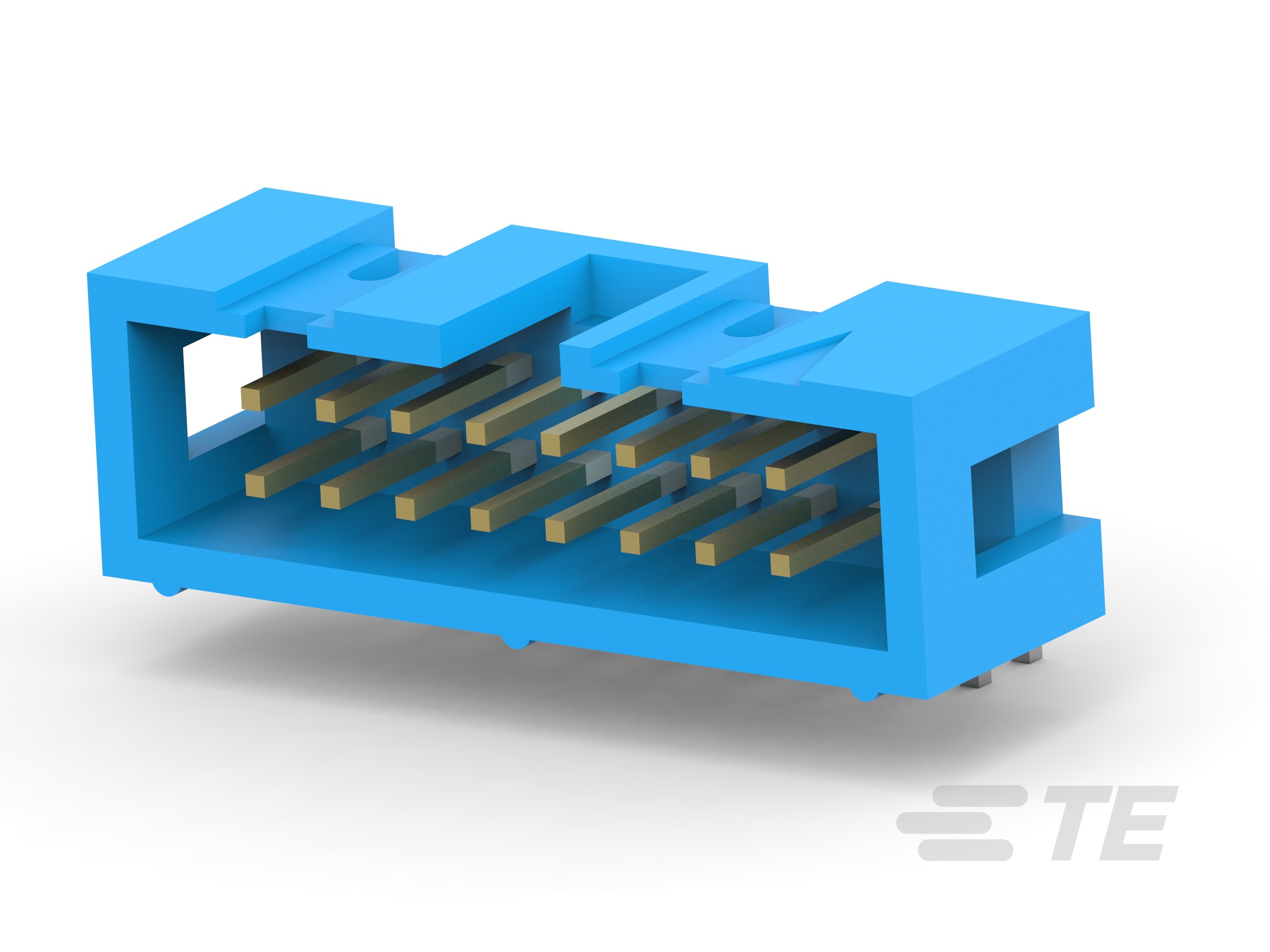

TE Connectivity AMP Connectors 2-1761605-6			2	Keying Slot	Right Angle Through Hole						16		Header	All	Tin	Board Cable/Wire	1 A	0.35 in	Square	Shrouded - 4 Wall	0.24 in	Push-Pull	Polybutylene Terephthalate (PBT)	Blue	0.102 in	0.1 in	Phosphor Bronze	0.1 in	UL94 V-0	30 µin	Solder	105 °C	-65 °C	Male Pin	250 V	Gold	100 Ąin
TE Connectivity AMP Connectors 926329-1																																						AMP-LATCH Series	Plug Polarizing Device (Key Post)
TE Connectivity AMP Connectors 2-1761608-8			2	Keying Slot	Through Hole						24 pos		Header	All	Tin	Board Cable/Wire	1 A	0.404 in	Square	Shrouded - 4 Wall	0.237 in	Latch Lock/Eject Hooks Short	Polybutylene Terephthalate (PBT)	Blue	0.102 in	0.1 in	Phosphor Bronze	0.1 in	UL94 V-0	30 µin	Solder	105 °C	-65 °C	Male Pin	250 V	Gold Gold-Palladium	100 Ąin
TE Connectivity AMP Connectors 103308-1			2	Keying Slot	Through Hole						10		Header	All	Tin-Lead	Board Cable/Wire	1 A	0.388 in	Square	Shrouded - 4 Wall	0.24 in	Push-Pull		Black	0.12 in	0.1 in	Brass	0.1 in	UL94 V-0	15 µin	Solder	105 °C	-65 °C	Male Pin		Gold Gold-Palladium

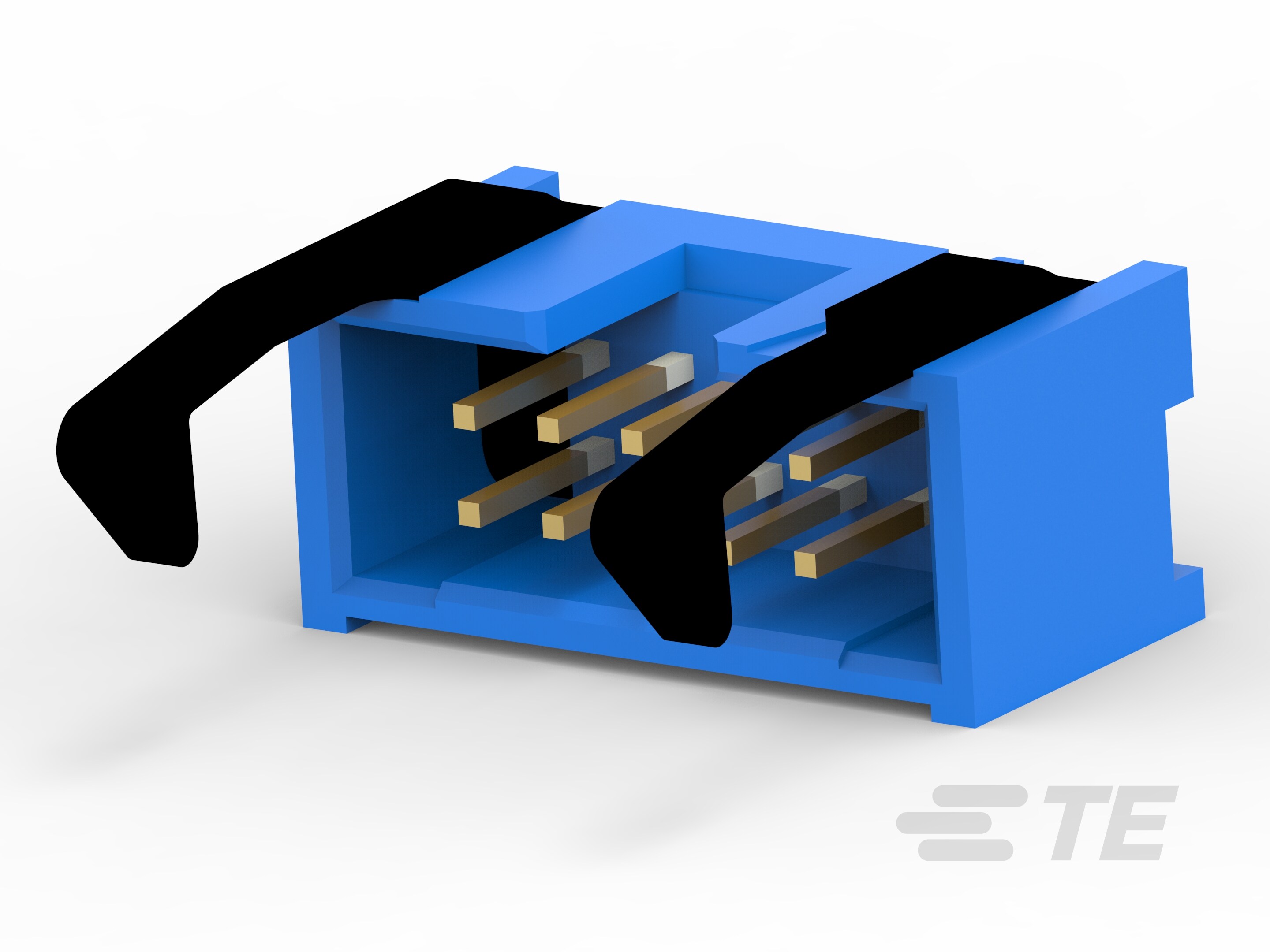

TE Connectivity AMP Connectors 2-1761606-3			2	Keying Slot	Through Hole						10		Header	All	Tin	Board Cable/Wire	1 A	0.404 in	Square	Shrouded - 4 Wall	0.237 in	Latch Lock/Eject Hooks Long	Polybutylene Terephthalate (PBT)	Blue	0.102 in	0.1 in	Phosphor Bronze	0.1 in	UL94 V-0	30 µin	Solder	105 °C	-65 °C	Male Pin	250 V	Gold Gold-Palladium	100 Ąin
TE Connectivity AMP Connectors 5103308-1			2	Keying Slot	Through Hole						10		Header	All	Tin	Board Cable/Wire	1 A	0.388 in	Square	Shrouded - 4 Wall	0.24 in	Push-Pull		Black	0.12 in	0.1 in	Brass	0.1 in	UL94 V-0	15 µin	Solder	105 °C	-65 °C	Male Pin		Gold Gold-Palladium	100 Ąin
