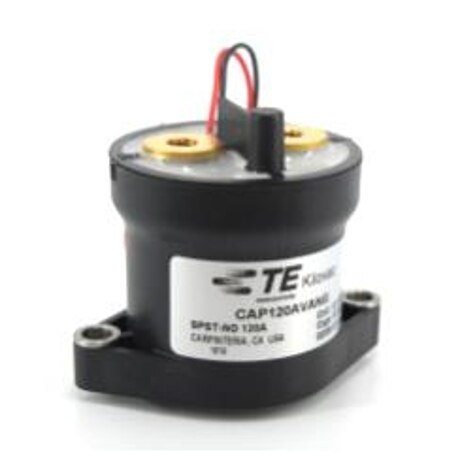

2-1618411-9
ActiveTE Connectivity AMP Connectors
CONTACTORS - ELECTROMECHANICAL CAP120AVANG=CONTACTR SPST-NO, 12V COIL
2-1618411-9
ActiveTE Connectivity AMP Connectors
CONTACTORS - ELECTROMECHANICAL CAP120AVANG=CONTACTR SPST-NO, 12V COIL
Description
General part information
2-1618411-9
High Voltage Contactor, DC, 1 Form X SPST-NO, 150 A Contact Rating, 12 VDC Coil Voltage, Chassis Mount, Environmentally Sealed
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1618411-9 |
|---|---|
| Coil Voltage | 12 VAC |
| Contact Form | Form, X, 1, SPST-NO, DM |
| Contact Rating (Current) | 600 A |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 8.5 VDC |
| Must Release Voltage | 7 VDC |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Switching Voltage DC (Max) | 600 VDC |
| Termination Style | Screw Terminal |
