Description
General part information

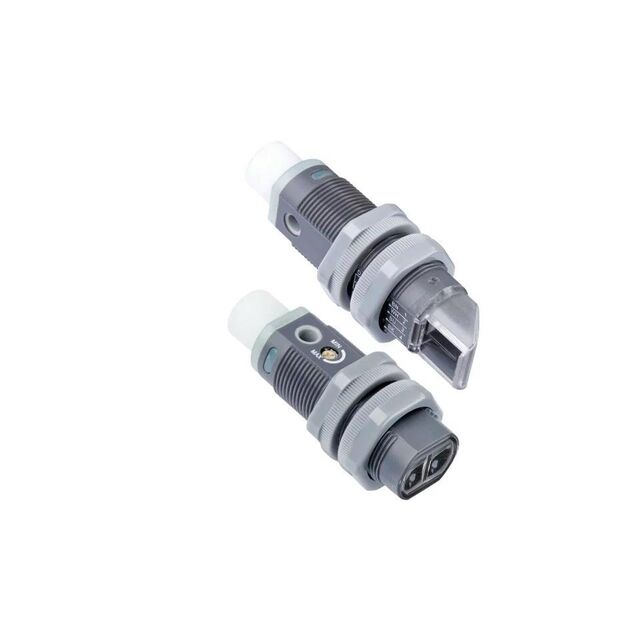

741-11028 - FR 18-2 IW-PS-K4
Retroreflective Optical Sensor 8.20' (2.5m) PNP
Technical Specifications
Parameters and characteristics for this part
| Specification | 741-11028 - FR 18-2 IW-PS-K4 |
|---|---|
| Adjustment Type | Adjustable, Potentiometer |
| Cable Length | 78.74 in |
| Connection Method | Cable |
| Ingress Protection | IP67 |
| Light Source | Red LED |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | PNP |
| Response Time | 1 ms |
| Sensing Distance | 8.2 ' |
| Sensing Method | Retroreflective |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
