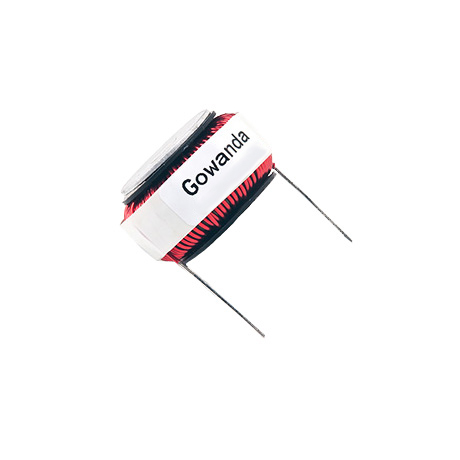

894AT5003RMLF
ActiveGowanda Electronics
HORIZONTAL TOROIDAL INDUCTOR
894AT5003RMLF
ActiveGowanda Electronics
HORIZONTAL TOROIDAL INDUCTOR
Description
General part information
894AT5003RMLF
500 µH Shielded Toroidal Inductor 3.4 A 131mOhm Max Radial, Horizontal Cylinder (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | 894AT5003RMLF |
|---|---|
| Current - Saturation (Isat) | 4.6 A |
| Current Rating | 3.4 A |
| DC Resistance (DCR) (Max) | 131 mOhm |
| Frequency - Self Resonant | 600 kHz |
| Height - Seated (Max) | 0.8 in |
| Inductance | 500 µH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial, Horizontal Cylinder (Open) |
| Package Name | Radial |
| Shielding | Shielded |
| Size / Dimension Diameter | 1.339 in |
| Tolerance | 10 % |
| Type | Toroidal |
