Description
General part information

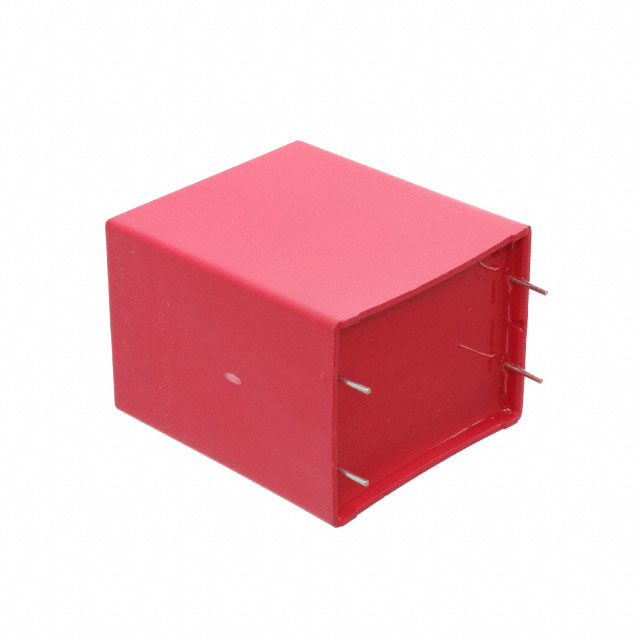

DCP4R254009JD4KSSD
40 µF Film Capacitor 1300V (1.3kV) Polypropylene (PP), Metallized Radial - 4 Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | DCP4R254009JD4KSSD |
|---|---|
| Applications | DC Filtering, DC Link, Automotive |
| Capacitance | 40 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 3.7 mOhm |
| Height - Seated (Max) | 2.559 in |
| Lead Spacing | 2.067 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package Leads | 4 Leads |
| Package Name | Radial |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 2.244 in |
| Size / Dimension Width | 1.772 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - DC | 1300 V |
