927829-1
ActiveTE Connectivity AMP Connectors
CONN SOCKET 11-13AWG CRIMP TIN
927829-1
ActiveTE Connectivity AMP Connectors
CONN SOCKET 11-13AWG CRIMP TIN
Description
General part information
Standard Power Timer Series

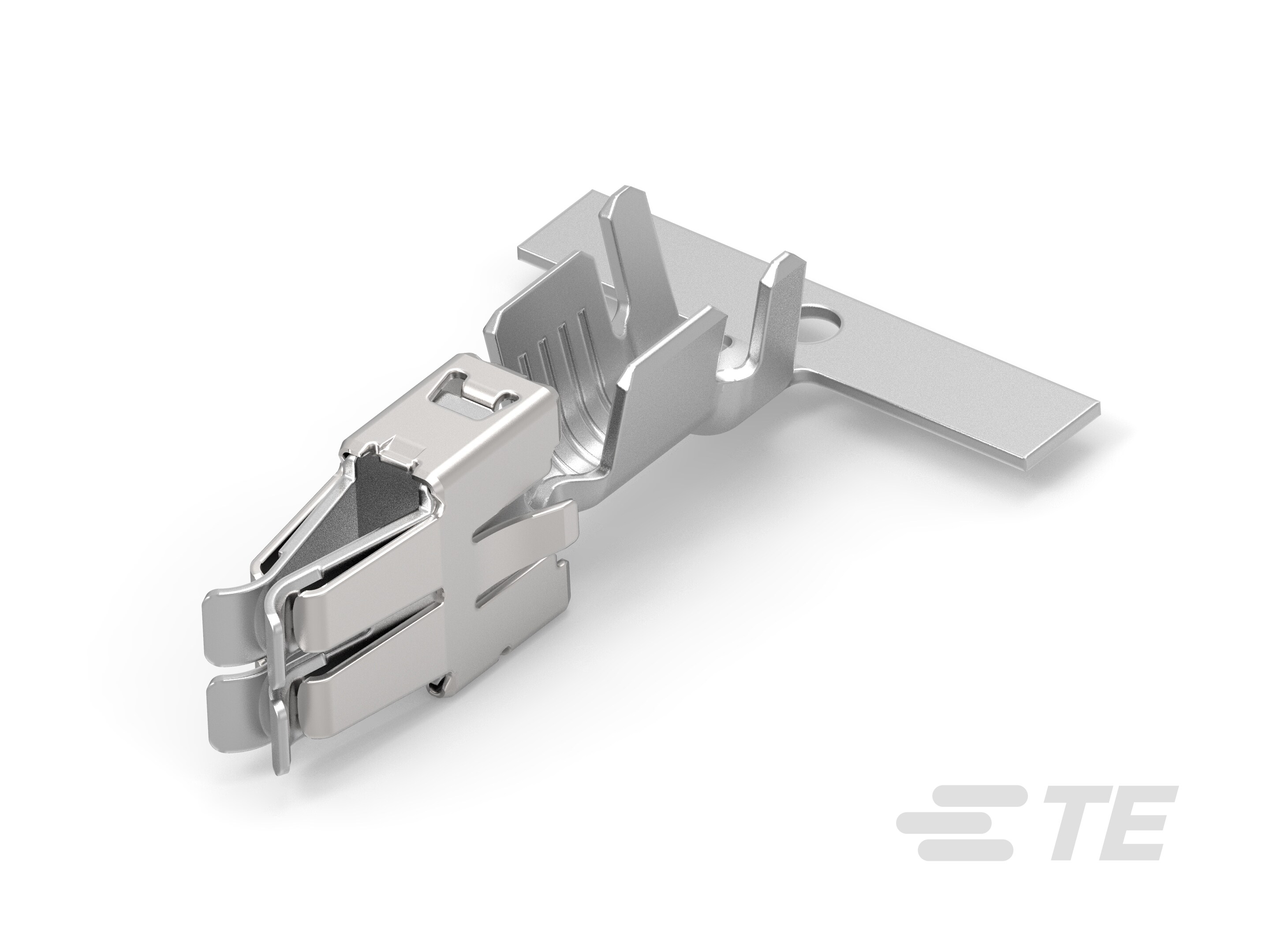

Receptacle Terminal, 12 – 11 AWG, 3 – 4 mm² Wire, 4.8 mm / 5.8 mm / 6.3 mm [.189 in / .228 in / .248 in] Tab Width, Tin (Sn), Standard Power Timer
Technical Specifications
Parameters and characteristics for this part
| Specification | 927829-1 |
|---|---|
| Contact Finish | Tin |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Type | Power |
| Wire Gauge (AWG) (Max) | 13 AWG |
| Wire Gauge (AWG) (Min) | 11 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
Empfehlung min. Leitungslaenge bei Ultraschall-Schweissknoten / RECOMMENDATION MIN. WIRE LENGTH FOR ULTRASONIS WELD SPLICES
GER_CD_927829_B4.pdf
ENG_CD_927829_B4.pdf
Datasheet
Allgemeine Crimpspezifikation / GENERAL CRIMP SPEC.
114-18037 - APPLICATION SPECIFICATION FOR STANDARD POWER TIMER CONTACTS
TEST REPORT FOR STANDARD POWER TIMER CONTACT SYSTEM
Standard Power Timer Kontakt
QUALIFICATION TEST REPORT FOR STANDARD POWER TIMER CONTACT SYSTEM
RV 100 CABLE-CONN. SYSTEM
927829-1 | Datasheet
