9-1478248-0
ActiveTE Connectivity AMP Connectors

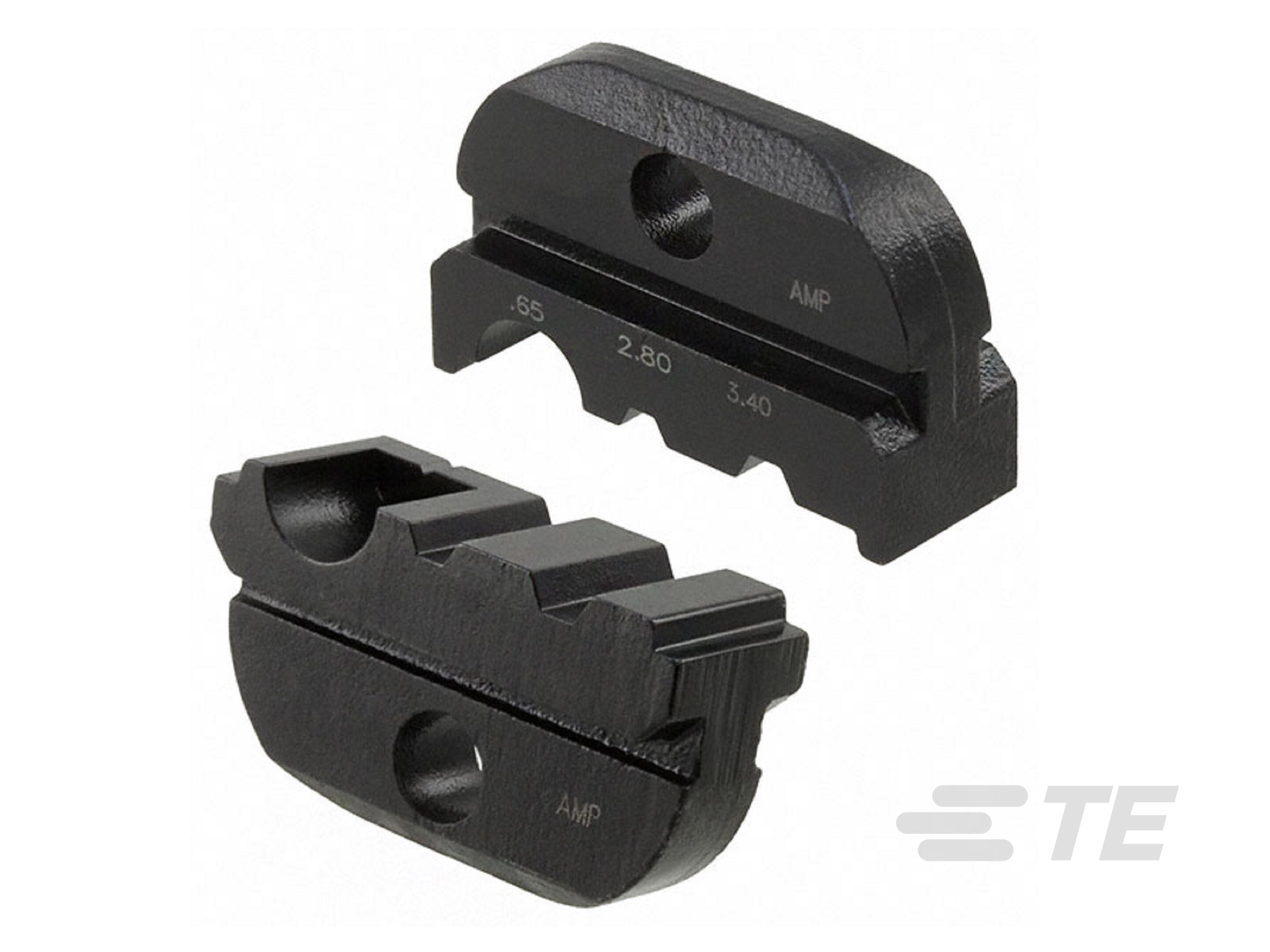

DIE SET FOR MCX ELBOW PLUG CRIMP TOOL
9-1478248-0
ActiveTE Connectivity AMP Connectors
DIE SET FOR MCX ELBOW PLUG CRIMP TOOL
Description
General part information
9-1478248-0
Commercial Crimp Tooling, Removable/Interchangeable, TE Product Specification (108-), Manual, Die Assembly, Hand Crimping Tools
Technical Specifications
Parameters and characteristics for this part
| Specification | 9-1478248-0 |
|---|---|
| Cable Group | 110, RG-174, 188, 316, URM 95, 178, 196 |
| Compatible Tools | 9-1478240-0 |
| For Use With/Related Products | RF - BNC, SMC, SMB, Coaxial, MCX |
| Specification Dimension | 0.134 in, 0.11 in, 0.26 in |
| Specifications | Hex, Hex - 0.110", 0.134", 0.260" |
| Specifications Length | 0.11 in |
| Tool Type | Die Set |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
