M1YXK-1636J

Active

IDC CABLE - MPD16K/MC16G/X

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3365 Series Datasheet +1

M1YXK-1636J

Active

IDC CABLE - MPD16K/MC16G/X

Deep-Dive with AI

DocumentsDatasheet 3365 Series Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.21
		10	$ 12.47
		25	$ 11.27
		50	$ 10.47
		100	$ 9.74
		250	$ 8.87
		500	$ 8.29
		1000	$ 7.77

Description

General part information

M1YXK Series

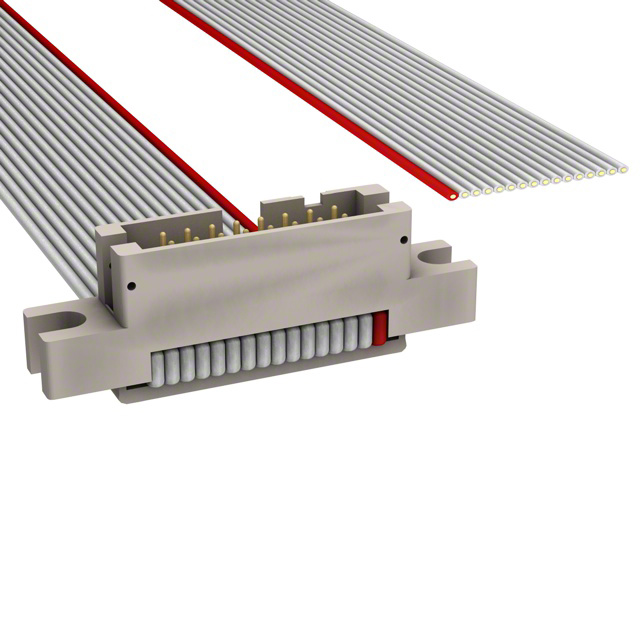

16 Position Cable Assembly Rectangular Plug to Cable 3.00' (914.40mm)

Documents

Technical documentation and resources

Datasheet

3365 Series Datasheet

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M1YXK-1636J	M1YXK Series

Cable Termination	IDC	IDC
Color	-	Multiple, Twisted Pair (Flat), Ribbon, Multiple
Connector Type	Plug to Cable	Plug to Cable
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Polarizing Key, Strain Relief, Flange	Polarizing Key, Strain Relief, Flange
Length [x]	3 ft	3 - 3.34 ft
Length [x]	914.4 mm	1.02 - 914.4 mm
Number of Positions	16	16
Number of Positions	-	10 - 64
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M1YXK Series

IDC CABLE - MPD50K/MC50G/X

Part	Cable Termination	Contact Finish	Shielding	Connector Type	Pitch - Cable	Pitch - Cable	Features	Pitch - Connector	Pitch - Connector	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]	Number of Positions	Color
3M M1YXK-5036J	IDC	Gold	Unshielded	Plug to Cable	0.05 "	1.27 mm	Flange, Polarizing Key, Strain Relief	0.1 in	2.54 mm	2	0.76 Ám	30 Áin	3 ft	914.4 mm	50
3M M1YXK-3036J	IDC	Gold	Unshielded	Plug to Cable	0.05 "	1.27 mm	Flange, Polarizing Key, Strain Relief	0.1 in	2.54 mm	2	0.76 Ám	30 Áin	3 ft	914.4 mm	30
3M M1YXK-3636J	IDC	Gold	Unshielded	Plug to Cable	0.05 "	1.27 mm	Flange, Polarizing Key, Strain Relief	0.1 in	2.54 mm	2	0.76 Ám	30 Áin	3 ft	914.4 mm	36
3M M1YXK-6040K	IDC	Gold	Unshielded	Plug to Cable	0.05 "	1.27 mm	Flange, Polarizing Key, Strain Relief	0.1 in	2.54 mm	2	0.76 Ám	30 Áin	3.34 ft	1.02 m	60	Multiple, Twisted Pair (Flat)
3M M1YXK-1036R	IDC	Gold	Unshielded	Plug to Cable	0.05 "	1.27 mm	Flange, Polarizing Key, Strain Relief	0.1 in	2.54 mm	2	0.76 Ám	30 Áin	3 ft	914.4 mm	10	Multiple, Ribbon
3M M1YXK-2040K	IDC	Gold	Unshielded	Plug to Cable	0.05 "	1.27 mm	Flange, Polarizing Key, Strain Relief	0.1 in	2.54 mm	2	0.76 Ám	30 Áin	3.34 ft	1.02 m	20	Multiple, Twisted Pair (Flat)
3M M1YXK-1036J	IDC	Gold	Unshielded	Plug to Cable	0.05 "	1.27 mm	Flange, Polarizing Key, Strain Relief	0.1 in	2.54 mm	2	0.76 Ám	30 Áin	3 ft	914.4 mm	10
3M M1YXK-2036J	IDC	Gold	Unshielded	Plug to Cable	0.05 "	1.27 mm	Flange, Polarizing Key, Strain Relief	0.1 in	2.54 mm	2	0.76 Ám	30 Áin	3 ft	914.4 mm	20
3M M1YXK-2436J	IDC	Gold	Unshielded	Plug to Cable	0.05 "	1.27 mm	Flange, Polarizing Key, Strain Relief	0.1 in	2.54 mm	2	0.76 Ám	30 Áin	3 ft	914.4 mm	24
3M M1YXK-3436J	IDC	Gold	Unshielded	Plug to Cable	0.05 "	1.27 mm	Flange, Polarizing Key, Strain Relief	0.1 in	2.54 mm	2	0.76 Ám	30 Áin	3 ft	914.4 mm	34
