800-1803-2-SJT0-BL-00300

Obsolete

CnC Tech, LLC

CORD 18AWG IEC320 RA - CBL 9.84'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

800-1803-2-SJT0-BL-00300

Obsolete

CnC Tech, LLC

CORD 18AWG IEC320 RA - CBL 9.84'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 12.00
		10	$ 10.63

Description

General part information

800-1803 Series

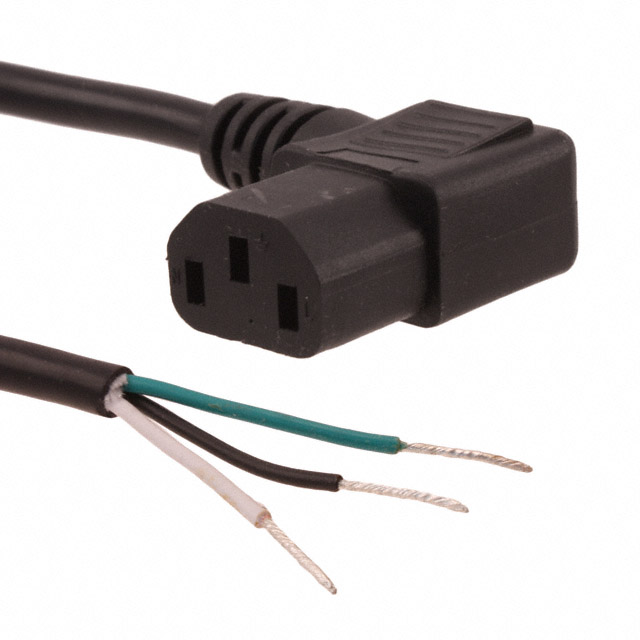

9.84' (3.00m) Power Cord Black IEC 320-C13, Right Angle To Cable SJT

Documents

Technical documentation and resources

Datasheet

Specification	800-1803-2-SJT0-BL-00300	800-1803 Series

1st Connector	Right Angle, IEC 320-C13	Right Angle, IEC 320-C13
2nd Connector	Cable	Cable
Approval Agency Marking	CSA, UL	UL, cUL, CSA
Approved Countries	United States, Canada	United States, Canada
Color	Black	Black
Cord Type	SJT	SJT, SVT
Current Rating (Amps)	10 A	10 A
Features	Drain Wire	Drain Wire
Length [x]	9.84 ft	1.64 - 9.84 ft
Length [x]	3 m	1 - 500 m
Number of Conductors	3	3
Operating Temperature	105 C	60 - 105 C
Shielding	Unshielded	Shielded, Unshielded
Style	Female Sockets (Slots) to Leads	Female Sockets (Slots) to Leads
Voltage Rating	250 VDC	125 - 250 VDC
Wire Gauge	18 AWG	18 AWG

Part	Color	Length [x]	Length [x]	Wire Gauge	Voltage Rating	Operating Temperature	2nd Connector	1st Connector	Number of Conductors	Style	Current Rating (Amps)	Cord Type	Shielding	Approved Countries	Approval Agency Marking	Features
CnC Tech, LLC 800-1803-2-SJT0-BL-00300-2	Black	9.84 ft	3 m	18 AWG	250 VDC	105 C	Cable	IEC 320-C13, Right Angle	3	Female Sockets (Slots) to Leads	10 A	SJT	Shielded
CnC Tech, LLC 800-1803-2-SVT0-BL-00050-1	Black	1.64 ft	500 mm	18 AWG	250 VDC	105 C	Cable	IEC 320-C13, Right Angle	3	Female Sockets (Slots) to Leads	10 A	SVT	Unshielded	Canada, United States	cUL, UL
CnC Tech, LLC 800-1803-2-SVT0-BL-00200-1	Black	6.56 ft	2 m	18 AWG	250 VDC	105 C	Cable	IEC 320-C13, Right Angle	3	Female Sockets (Slots) to Leads	10 A	SVT	Unshielded	Canada, United States	cUL, UL
CnC Tech, LLC 800-1803-1-SJT0-BL-00200	Black	6.56 ft	2 m	18 AWG	125 VDC	60 °C	Cable	IEC 320-C13, Right Angle	3	Female Sockets (Slots) to Leads	10 A	SJT	Unshielded	Canada, United States	CSA, UL
CnC Tech, LLC 800-1803-2-SVT0-BL-00100-1	Black	3.28 ft	1 m	18 AWG	250 VDC	105 C	Cable	IEC 320-C13, Right Angle	3	Female Sockets (Slots) to Leads	10 A	SVT	Unshielded	Canada, United States	cUL, UL
CnC Tech, LLC 800-1803-0-SJT0-BL-00200	Black	6.56 ft	2 m	18 AWG	125 VDC	60 °C	Cable	IEC 320-C13, Right Angle	3	Female Sockets (Slots) to Leads		SJT	Shielded	Canada, United States	CSA, UL	Drain Wire
CnC Tech, LLC 800-1803-2-SVT0-BL-00100	Black	3.28 ft	1 m	18 AWG	250 VDC	105 C	Cable	IEC 320-C13, Right Angle	3	Female Sockets (Slots) to Leads	10 A	SVT	Shielded	Canada, United States	CSA, UL	Drain Wire
CnC Tech, LLC 800-1803-0-SJT0-BL-00300	Black	9.84 ft	3 m	18 AWG	125 VDC	60 °C	Cable	IEC 320-C13, Right Angle	3	Female Sockets (Slots) to Leads		SJT	Shielded	Canada, United States	CSA, UL	Drain Wire
CnC Tech, LLC 800-1803-2-SJT0-BL-00200	Black	6.56 ft	2 m	18 AWG	250 VDC	105 C	Cable	IEC 320-C13, Right Angle	3	Female Sockets (Slots) to Leads	10 A	SJT	Unshielded	Canada, United States	CSA, UL	Drain Wire
CnC Tech, LLC 800-1803-0-SVT0-BL-00200	Black	6.56 ft	2 m	18 AWG	125 VDC	60 °C	Cable	IEC 320-C13, Right Angle	3	Female Sockets (Slots) to Leads	10 A	SVT	Unshielded	Canada, United States	CSA, UL

Part

Color

Length [x]

Wire Gauge

Voltage Rating

Operating Temperature

2nd Connector

1st Connector

Number of Conductors

Style

Current Rating (Amps)

Cord Type

Shielding

Approved Countries

Approval Agency Marking

Features

CnC Tech, LLC

800-1803-2-SJT0-BL-00300-2

Black

9.84 ft

3 m

18 AWG

250 VDC

105 C

Cable

IEC 320-C13, Right Angle

Female Sockets (Slots) to Leads

10 A

SJT

Shielded

CnC Tech, LLC

800-1803-2-SVT0-BL-00050-1

Black

1.64 ft

500 mm

18 AWG

250 VDC

105 C

Cable

IEC 320-C13, Right Angle

Female Sockets (Slots) to Leads

10 A

SVT

Unshielded

Canada, United States

cUL, UL

CnC Tech, LLC

800-1803-2-SVT0-BL-00200-1

Black

6.56 ft

2 m

18 AWG

250 VDC

105 C

Cable

IEC 320-C13, Right Angle

Female Sockets (Slots) to Leads

10 A

SVT

Unshielded

Canada, United States

cUL, UL

CnC Tech, LLC

800-1803-1-SJT0-BL-00200

Black

6.56 ft

2 m

18 AWG

125 VDC

60 °C

Cable

IEC 320-C13, Right Angle

Female Sockets (Slots) to Leads

10 A

SJT

Unshielded

Canada, United States

CSA, UL

CnC Tech, LLC

800-1803-2-SVT0-BL-00100-1

Black

3.28 ft

1 m

18 AWG

250 VDC

105 C

Cable

IEC 320-C13, Right Angle

Female Sockets (Slots) to Leads

10 A

SVT

Unshielded

Canada, United States

cUL, UL

CnC Tech, LLC

800-1803-0-SJT0-BL-00200

Black

6.56 ft

2 m

18 AWG

125 VDC

60 °C

Cable

IEC 320-C13, Right Angle

Female Sockets (Slots) to Leads

SJT

Shielded

Canada, United States

CSA, UL

Drain Wire

CnC Tech, LLC

800-1803-2-SVT0-BL-00100

Black

3.28 ft

1 m

18 AWG

250 VDC

105 C

Cable

IEC 320-C13, Right Angle

Female Sockets (Slots) to Leads

10 A

SVT

Shielded

Canada, United States

CSA, UL

Drain Wire

CnC Tech, LLC

800-1803-0-SJT0-BL-00300

Black

9.84 ft

3 m

18 AWG

125 VDC

60 °C

Cable

IEC 320-C13, Right Angle

Female Sockets (Slots) to Leads

SJT

Shielded

Canada, United States

CSA, UL

Drain Wire

CnC Tech, LLC

800-1803-2-SJT0-BL-00200

Black

6.56 ft

2 m

18 AWG

250 VDC

105 C

Cable

IEC 320-C13, Right Angle

Female Sockets (Slots) to Leads

10 A

SJT

Unshielded

Canada, United States

CSA, UL

Drain Wire

CnC Tech, LLC

800-1803-0-SVT0-BL-00200

Black

6.56 ft

2 m

18 AWG

125 VDC

60 °C

Cable

IEC 320-C13, Right Angle

Female Sockets (Slots) to Leads

10 A

SVT

Unshielded

Canada, United States

CSA, UL
