Description
General part information
52SA2AABK1

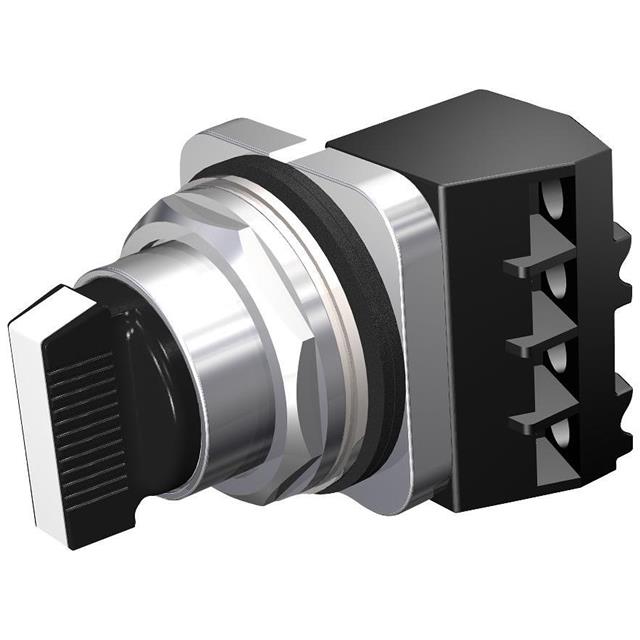

Selector Switch 2 Position SPST-NO 60A (AC) 110 V Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 52SA2AABK1 |
|---|---|
| Circuit | SPST-NO |
| Current Rating | 60 A |
| Illumination | Non-Illuminated |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Mounting Type | Panel Mount |
| Number of Positions | 2 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -35 °C |
| Switch Function | Off-On |
| Termination Style | Screw Terminal |
| Type | Standard |
| Voltage Rating - AC | 110 V |
