Description

General part information

1-2834021-8

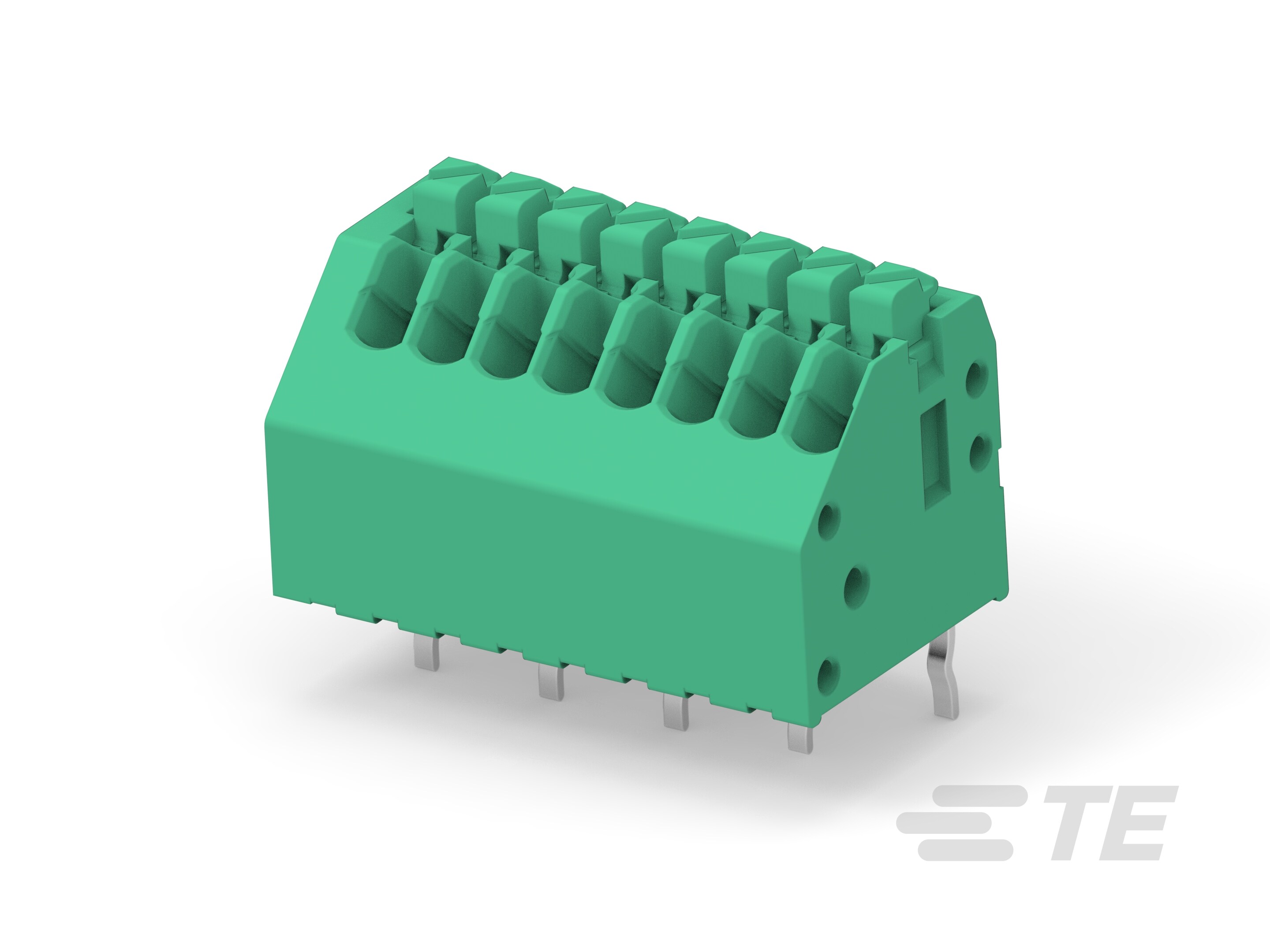

8 Position PCB Terminal Block, Receptacle, Wire-to-Board, 2.5 mm [.1 in] Centerline, 2 Row, 45° Wire Entry Angle, 26 – 20 AWG, 300 VAC

Technical Specifications

Parameters and characteristics for this part

Specification1-2834021-8
ColorGreen
Current5 A
FeaturesPush Button Actuated
Mating OrientationVertical with Board
Mounting TypeKinked Pin, Through Hole
Number of Levels1
Pitch0.098 in
Positions Per Level8
Voltage300 V
Wire Gauge (AWG) (Max)26 AWG
Wire Gauge (AWG) (Min)19.5 AWG
Wire TerminationLeg Spring, Screwless, Push-In Spring
