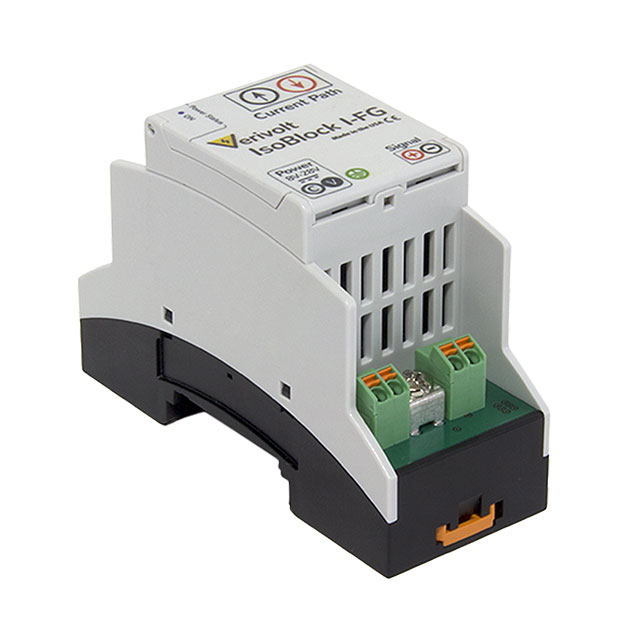

ISOBLOCK I-FG-1C (25A 5V)

Active

Verivolt LLC

TRANSDUCER CURRENT 9-28VDC

Deep-Dive with AI

Search across all available documentation for this part.

ISOBLOCK I-FG-1C (25A 5V)

Active

Verivolt LLC

TRANSDUCER CURRENT 9-28VDC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 204.98

Description

General part information

ISOBLOCK I Series

Current Transducer 0 ~ 25A Input ±5V Output 9 ~ 28VDC DIN Rail

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ISOBLOCK I-FG-1C (25A 5V)	ISOBLOCK I Series

Accuracy	0.2 %	0.2 %
Input Range	-	200 mV
Input Range [Max]	25 A	6 - 60 A
Input Range [Min]	0 A	0 A
Isolation	1200 V	1200 - 2000 V
Mounting Type	DIN Rail	DIN Rail
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Output	5 V	5 - 10 V
Response Time	5 µs	2.8 - 5 µs
Termination Style	Spring Terminal	Spring Terminal, Screw Terminal
Type	Current Transducer	Current Transducer
Voltage - Supply [Max]	28 V	28 V
Voltage - Supply [Min]	9 V	9 V

ISOBLOCK I Series

TRANSDUCER CURRENT 9-28VDC

Part	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Isolation	Type	Output	Accuracy	Response Time	Operating Temperature [Max]	Operating Temperature [Min]	Input Range [Max]	Input Range [Min]	Input Range
Verivolt LLC ISOBLOCK I-FG-4C (15A 5V)	Spring Terminal	28 V	9 V	DIN Rail	1200 V	Current Transducer	5 V	0.2 %	5 µs	70 °C	-25 °C	15 A	0 A
Verivolt LLC ISOBLOCK I-FG-4C (6A 5V)	Spring Terminal	28 V	9 V	DIN Rail	1200 V	Current Transducer	5 V	0.2 %	5 µs	70 °C	-25 °C	6 A	0 A
Verivolt LLC ISOBLOCK I-ST-1C (200MV 10V)	Screw Terminal, Spring Terminal	28 V	9 V	DIN Rail	2000 V	Current Transducer	10 V	0.2 %	2.8 µs	70 °C	-25 °C			200 mV
Verivolt LLC ISOBLOCK I-FG-1C (15A 10V)	Spring Terminal	28 V	9 V	DIN Rail	1200 V	Current Transducer	10 V	0.2 %	5 µs	70 °C	-25 °C	15 A	0 A
Verivolt LLC ISOBLOCK I-ST-1C (50A 10V)	Screw Terminal, Spring Terminal	28 V	9 V	DIN Rail	2000 V	Current Transducer	10 V	0.2 %	2.8 µs	70 °C	-25 °C	50 A	0 A
Verivolt LLC ISOBLOCK I-ST-1C (20A 10V)	Screw Terminal, Spring Terminal	28 V	9 V	DIN Rail	2000 V	Current Transducer	10 V	0.2 %	2.8 µs	70 °C	-25 °C	20 A	0 A
Verivolt LLC ISOBLOCK I-FG-1C (25A 5V)	Spring Terminal	28 V	9 V	DIN Rail	1200 V	Current Transducer	5 V	0.2 %	5 µs	70 °C	-25 °C	25 A	0 A
Verivolt LLC ISOBLOCK I-ST-1C (60A 10V)	Screw Terminal, Spring Terminal	28 V	9 V	DIN Rail	2000 V	Current Transducer	10 V	0.2 %	2.8 µs	70 °C	-25 °C	60 A	0 A
Verivolt LLC ISOBLOCK I-ST-1C (30A 10V)	Screw Terminal, Spring Terminal	28 V	9 V	DIN Rail	2000 V	Current Transducer	10 V	0.2 %	2.8 µs	70 °C	-25 °C
Verivolt LLC ISOBLOCK I-FG-1C (50A 10V)	Screw Terminal, Spring Terminal	28 V	9 V	DIN Rail	1200 V	Current Transducer	10 V	0.2 %	5 µs	70 °C	-25 °C	50 A	0 A
