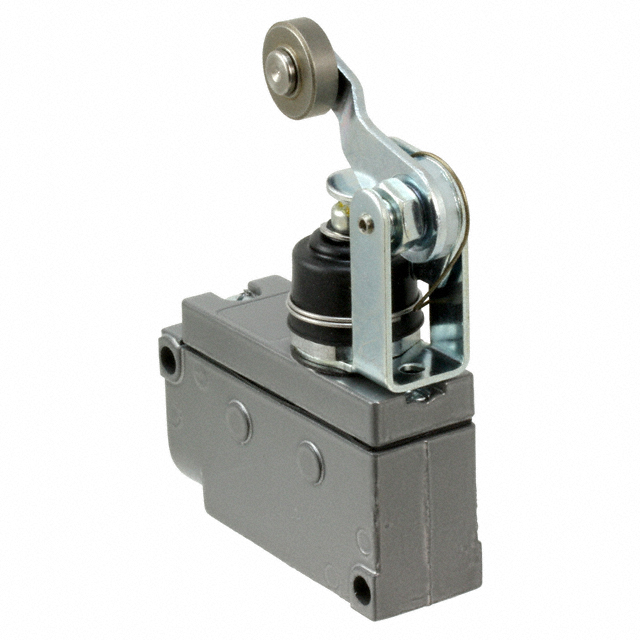

BZE7-2RN2-C

Active

Honeywell Sensing and Control EMEA

SWITCH SNAP ACTION SPDT 15A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Control EMEA

SWITCH SNAP ACTION SPDT 15A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BZE7-2RN2-C	BZE7-2 Series

Actuator Type	Roller, Lever	Coil, Spring, Round (Pin Plunger), Roller, Lever
Circuit	SPDT	SPDT
Current Rating (Amps)	500 mA, 15 A	15 - 500 mA
Differential Travel	0.15 mm	0.05 - 0.15 mm
Differential Travel	0.006 in	0.002 - 0.006 in
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	10000000 Cycles	10000000 Cycles
Mounting Type	Chassis Mount	Chassis Mount
Operating Force	-	198 gf
Operating Force [Max]	567 gf	567 gf
Operating Force [Min]	283 gf	283 gf
Operating Position	-	15 °
Operating Temperature [Max]	71 °C	71 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Overtravel	5.6 mm	5.6 mm
Overtravel	0.219 in	0.219 in
Pretravel	0.188 in	0.078 - 15 °
Pretravel	4.8 mm	2 - 4.8 mm
Release Force	170 gf	113 - 170 gf
Switch Function	On-Mom	On-Mom
Termination Style	Screw Terminal	Screw Terminal
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	125 VDC	125 VDC

SWITCH SNAP ACTION SPDT 15A 125V

Part	Current Rating (Amps)	Termination Style	Actuator Type	Circuit	Voltage Rating - DC	Switch Function	Mechanical Life	Operating Force	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Pretravel	Operating Position	Mounting Type	Pretravel	Release Force	Differential Travel	Differential Travel	Overtravel	Overtravel	Operating Force [Min]	Operating Force [Max]
Honeywell Sensing and Control EMEA BZE7-2RN18-C	15 A, 500 mA	Screw Terminal	Coil, Spring	SPDT	125 VDC	On-Mom	10000000 Cycles	198 gf	125 V	71 °C	-30 ░C	IP65 - Dust Tight, Water Resistant	15 °	15 °	Chassis Mount
Honeywell Sensing and Control EMEA BZE7-2RN-C	15 A, 500 mA	Screw Terminal	Round (Pin Plunger)	SPDT	125 VDC	On-Mom	10000000 Cycles		125 V	71 °C	-30 ░C	IP65 - Dust Tight, Water Resistant	0.078 "		Chassis Mount	2 mm	113 gf	0.002 in	0.05 mm	5.6 mm	0.219 in
Honeywell Sensing and Control EMEA BZE7-2RN2-C	15 A, 500 mA	Screw Terminal	Lever, Roller	SPDT	125 VDC	On-Mom	10000000 Cycles		125 V	71 °C	-30 ░C	IP65 - Dust Tight, Water Resistant	0.188 in		Chassis Mount	4.8 mm	170 gf	0.006 in	0.15 mm	5.6 mm	0.219 in	283 gf	567 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 152.70

General part information

Switch SPDT Chassis Mount
