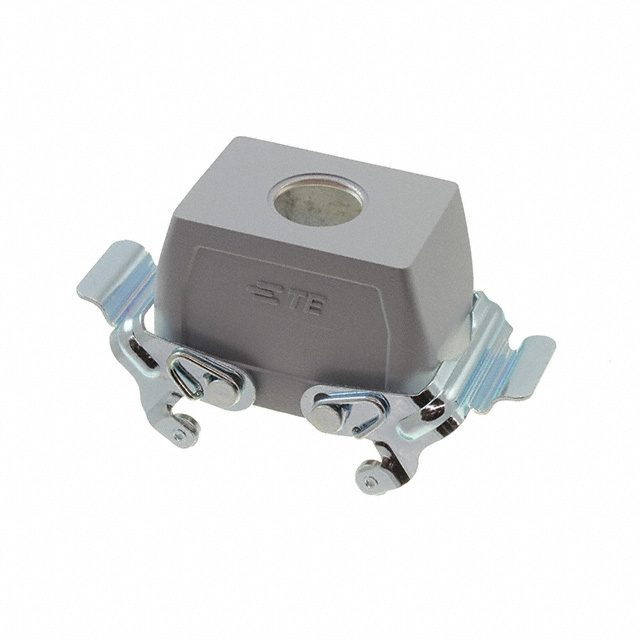

CONN HOOD TOP ENTRY SZ4 PG16
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1102267-1
ActiveTE Connectivity AMP Connectors
CONN HOOD TOP ENTRY SZ4 PG16
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-1102267-1 | 1102267 Series |
|---|---|---|
| Connector Type | Hood | Hood |
| Housing Color | Gray | Gray, Black |
| Housing Finish | Powder Coated | Powder Coated, Aluminum Oxide |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Hood | Locking Clip (2) on Hood, Locking Clip (1) on Base Bottom, Locking Clip (2) on Base Bottom |
| Size | 4 | 4 |
| Size / Dimension [x] | 2.874 in | 2.874 in |
| Size / Dimension [x] | 73 mm | 73 mm |
| Size / Dimension [y] | 1.693 in | 1.693 in |
| Size / Dimension [y] | 43 mm | 43 mm |
| Size / Dimension [z] | 1.969 in | 1.969 in |
| Size / Dimension [z] | 50 mm | 50 mm |
| Style | Top Entry | Top Entry |
| Thread Size | PG16 | PG16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 2 | $ 44.51 | |
| 8 | $ 42.87 | |||
| 30 | $ 41.22 | |||
1102267 Series
CONN HOOD TOP ENTRY SZ4 PG16
| Part | Size | Housing Finish | Housing Material | Housing Color | Thread Size | Ingress Protection | Connector Type | Lock Location | Style | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-1102267-1 | 4 | Powder Coated | Aluminum Alloy, Die Cast | Gray | PG16 | IP65 - Dust Tight, Water Resistant | Hood | Locking Clip (2) on Hood | Top Entry | 2.874 in | 1.969 in | 1.693 in | 50 mm | 73 mm | 43 mm |
TE Connectivity AMP Connectors 2-1102267-7 | 4 | Aluminum Oxide | Aluminum Alloy, Die Cast | Black | PG16 | IP65 - Dust Tight, Water Resistant | Hood | Locking Clip (1) on Base Bottom | Top Entry | 2.874 in | 1.969 in | 1.693 in | 50 mm | 73 mm | 43 mm |
TE Connectivity AMP Connectors 2-1102267-6 | 4 | Aluminum Oxide | Aluminum Alloy, Die Cast | Black | PG16 | IP65 - Dust Tight, Water Resistant | Hood | Locking Clip (2) on Base Bottom | Top Entry | 2.874 in | 1.969 in | 1.693 in | 50 mm | 73 mm | 43 mm |
Description
General part information
1102267 Series
Hood Connector Top Entry PG16 4 IP65 - Dust Tight, Water Resistant
